2866213, Phoenix Contact 24V dc Input DIN Rail Uninterruptible Power Supply (480W), QUINT-BUFFER, ИБП

Phoenix Contact Uninterruptible Power Supply - Quint DC UPS, 2866213

Phoenix Contacts range of QUINT-UPS is a selection of uninterruptible power supplies that feature QI technology. The integrated IQ technology provides users with information on the charging state of the UPS, the IQ also provides information on the energy storage remaining run time. This particular model offers short term mains interruptions that are bridged by a QUINT BUFFER, a maintenance-free buffer module that is on a capacitor basis. Due to the QUINT BUFFER, systems have the capability to also run in unstable networks or in the event of a failure of a longer duration - can shut down correctly after all relevant process data is saved.

Features & Benefits

• The bridging time is 200ms at 20A and 4s at 1A
• Buffer module also acts as an energy storage device for peak loads and for triggering fuses
• Function monitoring is enabled through an active switching output and control lamp
• An integrated diode allows loads to be divided into buffered and unbuffered loads - extending the buffered period to make sure there is protection against errors in the internal network
• Dimensions: W64mm x H130mm x D125mm
• Has an IP rating of IP20, this means that the UPS is protected against solid objects up to 12 mm and no protection against liquids
• Maintenance-free, energy storage device
• Din rail mounting
• Function monitoring is achieved through the LED display and a floating changeover contact
• Primary cycled
• Narrow design
• Extended buffer time

Standards

EN 60950 / VDE 0805 (SELV), EN 50178 / VDE 0160 (PELV)

Approvals

CE, UL, ship building GL

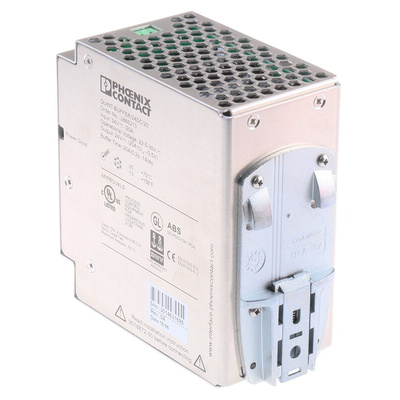

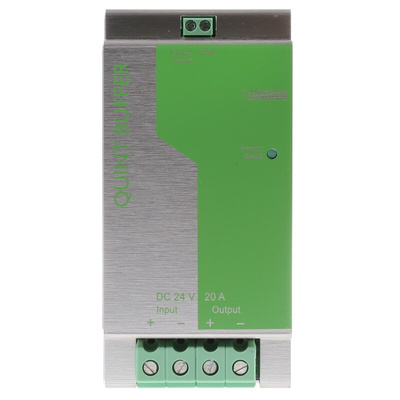

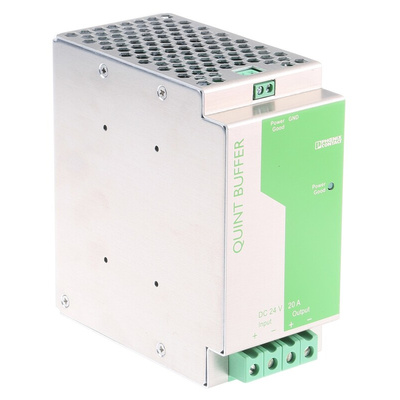

Phoenix Contact Uninterruptible Power Supply, 24V DC Output, 130mm Length - QUINT-BUFFER/24DC/20 - 2866213

Overcome the inconvenience of short-term mains power supply interruptions with this UPS (uninterruptible power supply) from Phoenix Contact. It allows for the continuous and smooth operation of systems when networks are unstable and has an extremely fast bridging time of 200ms at 20A.
The technologically advanced device's abilities extend to ensuring the correct shutdown of systems in the event of a long-term power failure. That means you can be sure all of your process data is saved. An integrated diode protects against errors in your internal network by distinguishing between buffered and unbuffered loads and extending the buffered period when necessary.
This device is for DIN rail mounting and also acts as an energy storage device for peak loads and triggering fuses. It enhances the safety and reliability of any industrial control system and is suitable for use in a broad range of temperatures from -25°C to +70°C.

• Compact dimensions of 130 (H) x 64 (W) x 125mm (D)
• IP20 (ingress protection) rated enclosure that's protected from touch and large dirt particles
• 24V DC output for versatile use
• Complies with LV directive 2006/95/EC for conformity to low-voltage standards

Datasheet 2866213
