ATS01N232QN, Schneider Electric Soft Starter, Soft Start, 15 kW, 415 V ac, 3 Phase, IP20, Устройство плавного пуска

Schneider Electric Soft Starters - Altistart 01 Series

Created and designed to operate as a torque limiter on starting, or as a soft start or soft stop unit for asynchronous motors. This range of soft starters enhances the starting performance of asynchronous motors by allowing them to start smoothly, gradually and in a controlled manner. They are compact and easy to install, the Altistart 01 series can be mounted side by side.

Features & Benefits

• Prevents mechanical shocks


• Reduces wear and tear


• Reduces the amount of maintenance work


• Reduces production town time which in turn keeps production level up


• Because the Altistart 01 series limits the starting torque and current peas on starting machines which do not require a high starting torque, it is the perfect solutions for applications such as conveyors, pumps, fans, compressors, small cranes, conveyor belts and much more


• Complies and adheres to IEC/EN 60947-4-2, carries UL, CSA, C-Tick, CCC certifications and e marking


• There are three ranges that create the Altistart 01 series, these are ATS 01N1, ATS 01N2 and ATSU 01N2

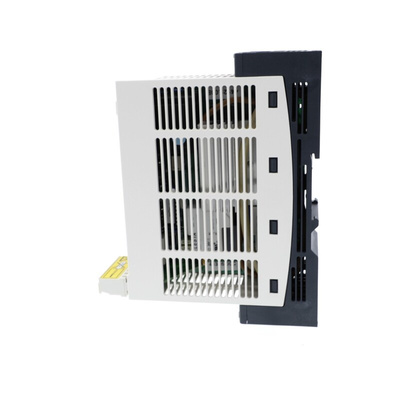

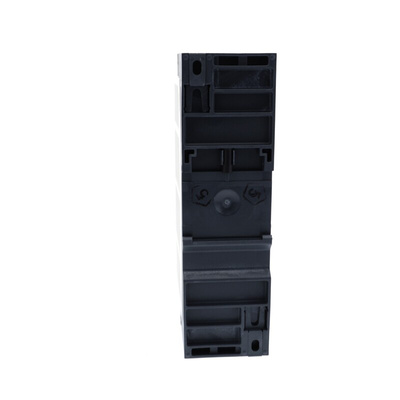

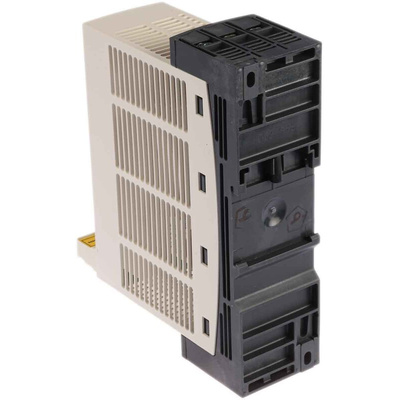

Schneider Electric Soft Starter, 32A Current Rating, 15kW Power Rating - Alistart 01 Series - ATS01N232QN

Get your machinery up and running smoothly with this soft starter from Schneider Electric. It controls inrush currents, so your motor can kick into action without mechanical stress causing damage. Thanks to its 32A current rating, you can rely on the unit to handle heavy-duty industrial applications. Its compact dimensions of 154 (H) x 45 (W) x 131mm (D) make it a cinch to install in systems where space is in short supply. This device runs like clockwork in settings where temperatures reach between -10°C and +40°C.

Features & Benefits

• Built-in bypass reduces noise and heat dissipation to support a longer motor lifespan
• 415V AC rating for use with high-voltage power sources
• IP20-rated housing indicates shielding against objects larger than 12.5mm, including your fingers

Applications

• Automated assembly and packaging lines
• Pumps and compressors
• Construction equipment

How many phases does this soft starter have?

This soft starter is a 3-phase device with an integrated relay and contactor for improved efficiency. This also means it can handle the larger load demands of commercial and industrial motors.

How do I mount this soft starter?

Mounting is simple and doesn't call for tools – just snap the unit onto a DIN rail.
