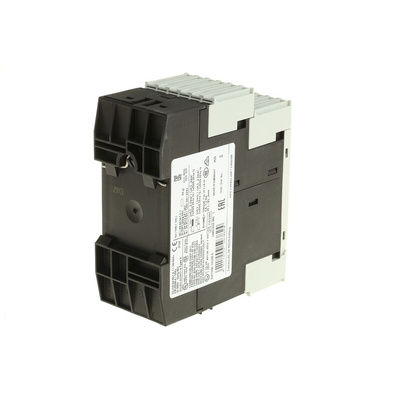

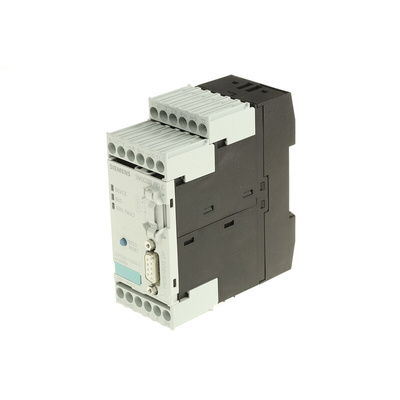

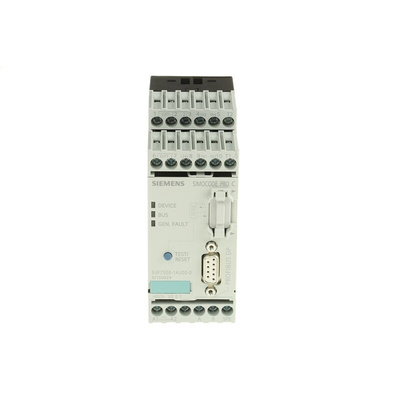

3UF7000-1AU00-0, Siemens Motor Protection Unit, 110 → 240 V ac/dc

Basic Unit

SIMOCODE (SIRIUS Motor Management and Control Devices) Pro C is a practicable and economical motor management system.SIMOCODE pro is a flexible, modular motor management system it optimizes the connection between I&C and motor system, increases plant availability and allows significant savings to be made for startup, operation and maintenance of a system.,When SIMOCODE pro is installed in the cabinet, it is the intelligent interface between the higher-level automation system and the motor feeder and includes the following:,• Multifunctional, solid-state full motor protection which is independent of the automation system,• Flexible software instead of hardware for the motor control,• Detailed operational, service and diagnostics data,• Open communication through PROFIBUS DP, the standard for fieldbus systems,The Simocode Pro C (Compact) system is used for:,• Direct-on-line and reversing starters,• Actuation of a circuit-breaker (MCCB) with up to 4 binary inputs, up to 3 monostable relay outputs and one thermistor connection (binary PTC),The basic unit 1 is available in two different variants for the following supply voltages:,• 24Vdc,• 110 to 240Vac/dc,Inputs:,• 4 binary inputs, with internal supply from 24Vdc,Outputs:,• 3 (2+1) monostable relay outputs,Thermistor connection for binary PTC,PROFIBUS interface:,• 9-pole SUB-D or,• Terminal connection,Connection of the supply voltage:,• 24Vdc or 110 to 240Vac/dc,Test/Reset button,3 LED's,2 system interfaces for connection of:,• a current measuring module and,• an operator panel,Basic unit 1 is suitable for standard rail mounting or, with additional push-in lugs, for fixing to a mounting plate.

Simocode Pro C 3UF7000-1AU00-0
