2709561, Phoenix Contact DIN Rail Mounting Kit, for use with DIN rail unit, ME 17.5 TBUS 1.5/ 5-ST-3.81 GN Series

Power Transmission Sources, MINI POWER 24 V

MINI POWER

Wide range input for global use
Single-phase, primarily switched
Slim design
Good operational safety due to lengthy mains buffering under full load
Power boost to start difficult loads reliably (power reserve of up to 100%)
Parallel circuit to improve power and redundancy
Wide temperature range = suitable for outdoor installation
Preventive function monitoring through LED signalling and an active switching output for remote diagnosis
Adjustable output voltage
Device connection with double terminal for positive and negative to provide fast potential distribution
Top-hat rail mounting

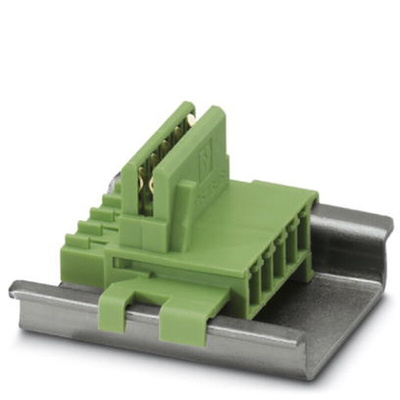

Rail-Mount Bus Connector ME.17.5

5-pole
Enables the supply of additional modules of the same system with a regulated voltage of 24 Vdc
For housing widths of 17.5 mm
Can only be used in conjunction with the MINI POWER 24 Vdc / 1.5 A
Two rail-mount bus connectors are required per power transmission source
DIN rail assembly

Standards

EN 60950 / VDE 0805 (SELV), EN 61558-2-17, EN 50178 / VDE 0160 (PELV), DIN VDE 0100-410 / DIN VDE 0106-1010

Approvals

CE, UL
