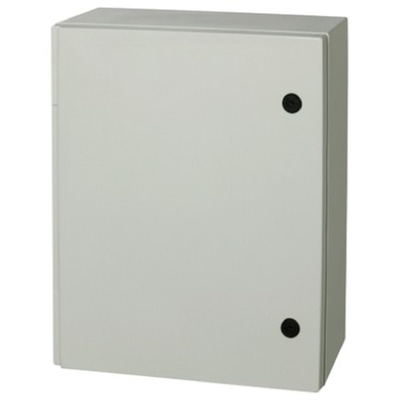

CAB P 1008030 CABINET, Fibox CAB P Series Polyester Wall Box, IP66, 1035 mm x 835 mm x 300mm, Настенный шкаф

Fibox CAB P Polyester Enclosure, IP66

The CAB P series from Fibox is an IP66 rated wall mount enclosure made from impact resistant glass reinforced polyester. It can withstand harsh industrial and outdoor environments and has a UL94-HB flammability rating.

Cabinets

Manufactured from high impact resistant glass reinforced polyester
Light grey RAL 7035
Withstands harsh industrial and outdoor environments
Hinged cover
Flammability rating UL94-HB
UV resistant UL 508
Electrically insulated

Mounting Plates (supplied separately)

Galvanised steel 1.5 mm thick
Mounting screws are supplied with the cabinet

Note

The screws for mounting the enclosure on to the wall are not included.

Standards

EN 60529, EN 50102.

Approvals

NEMA Type 3, 3R, 3S, 4, 4X, 12, 13.

Supplied with

Cabinet base, door with PUR gasket, 3 mm double bit lock with transport and plastic key. Screws for mounting plate/DIN Rail and for fastening the wall mounting lugs to the cabinet.

FIBOX CAB P 1008030 Data Sheet

Datasheet
