1458200, Spirax Sarco 14.6 bar Stainless Steel Ball Float Steam Trap, 1/2 in BSP, Конденсатоотводчик

5075885
Номер производителя: 1458200Производитель: Spirax Sarco
Цена за шт.
134676.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

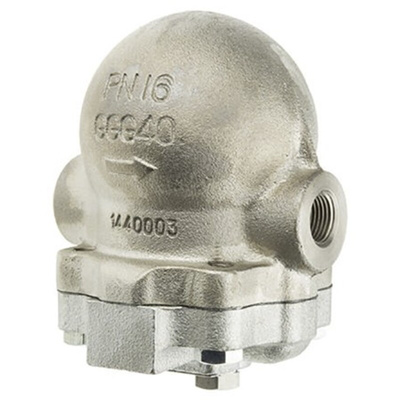

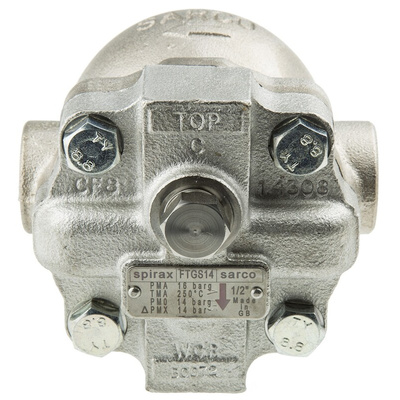

Ball Float Steam Trap FTGS14

The FT range of ball float steam traps from Spirax Sarco are the most popular mechanical steam traps in the world. The new FTGS14 has been designed to offer perfect condensate drainage and air venting for process, heating and mains drainage applications. With a substantial network of experienced steam specialists in the world, Spirax Sarco can support you in the effective use and operation of your steam and process plant.

Features and Benefits

•Stainless steel base for longer life and low maintenance
•Easy to replace
•No live steam loss
•Erosion resistant
•Effective condensate drainage
•Quick start-up
•Impact resistant

Product Application Information

Ideal for use handling variable loads associated with temperature controlled heat exchangers. Can also be used in rotating drying cylinders as the ball float steam trap has a steam lock release facility.

Iron Steam Traps

All units PN16 with Stainless Steel internal parts and Reinforced Exfoliated Graphite gaskets, Straight Orientation; Maximum Operating Pressure - 14bar g; Maximum Allowable Pressure - 16 bar g; Maximum Cold Hydraulic Test Pressure - 24bar g; Cover Bolts Material - BS 3692 Gr.10 Steel;

Техническая спецификация
pdfDatasheet
Корпус - материал:
Нержавеющая сталь
Максимальная температура:
+250°C
Максимальное рабочее давление:
14.6 бар
Ориентация:
Горизонтальный
Размер соединения:
1/2in
Связь:
1/2 in BSP
Стандарт резьбы или тип соединения:
BSP
Тип ловушки:
Ball Float
Уплотняющий материал:
Графит
