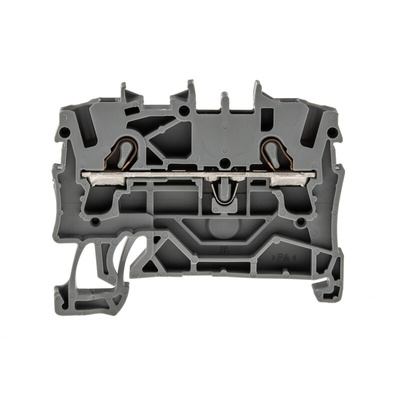

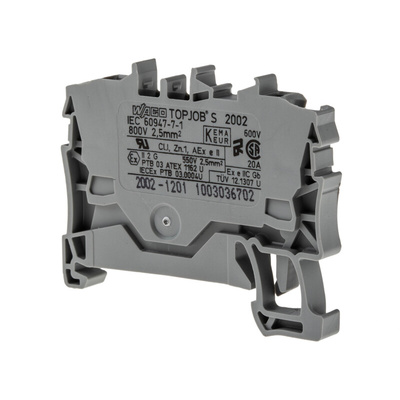

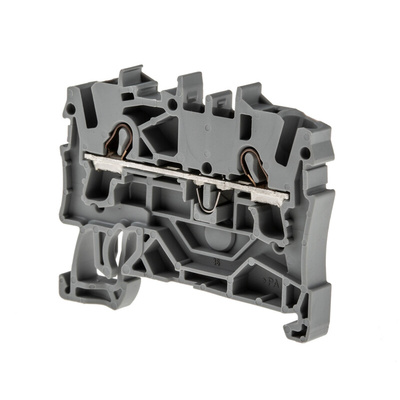

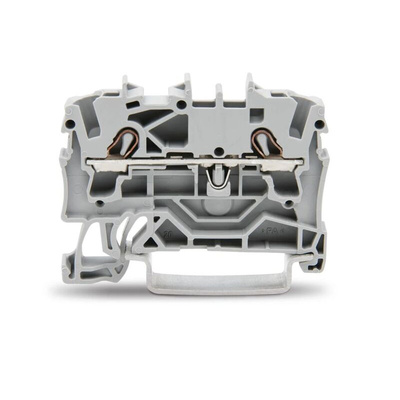

2002-1201, Wago TOPJOB S, 2002 Series Grey Feed Through Terminal Block, 2.5mm², Single-Level, Push-In Cage Clamp Termination,

Wago Terminal Block, Push-In Termination, Front-Entry Wiring - 2002 Series - 2002-1201

Keep your electrical systems out of harm's way with this terminal block from Wago. It offers a safe way to couple wires to your DIN rail-connected equipment, preventing contact with live parts. The unit's copper connectors are highly conductive for reliable signal transmission. Thanks to its contact rating of 32A, it fits the bill for high-current applications. It has clamp terminals, so it's a snap to link wires by simply pushing them in. As it accepts conductor sizes between 22 and 12AWG, this component is a versatile solution for different circuit types.

Features & Benefits

• Rated surge voltage of 8kV to handle hefty power spikes without damage
• Light weight of 5.1g puts minimal strain on your DIN rail
• DIN rail mounting is simple and tool-free, saving time and hassle
• Plastic housing offers impact resistance and insulation for safe use in harsh environments

Applications

• Automotive manufacturing
• Process and packaging plants
• Industrial lighting systems

How do I disconnect a terminated cable from this terminal block?

To disconnect a cable, release it by simply pressing down on its clamp using a punch tool.

Din Rail Terminal 2x2.5mm2 Grey

Datasheet - 2002 - 1201

Installation Sheet - 2002 - 1201
