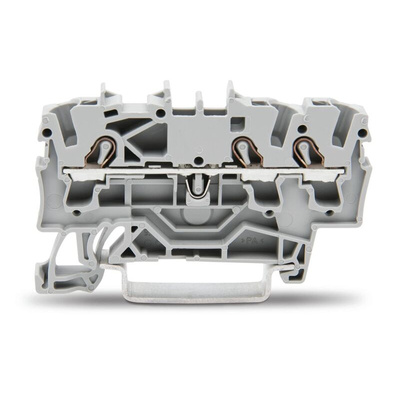

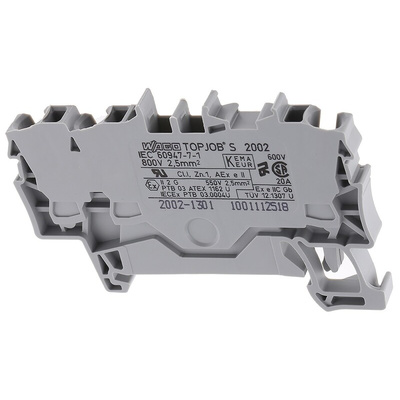

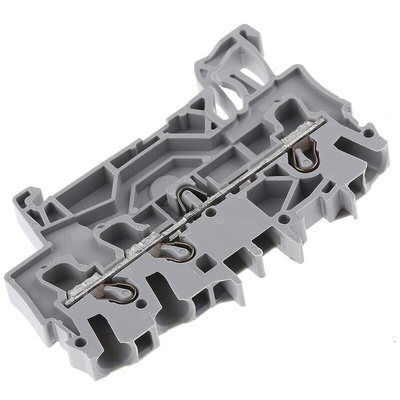

2002-1301, Wago TOPJOB S, 2002 Series Grey Feed Through Terminal Block, 2.5mm², Single-Level, Push-In Cage Clamp Termination,

Grey 3-conductor / 2.5 mm² – TOPJOB®S series connection terminal blocks

Terminal blocks for TS 35 DIN Rails use CAGE CLAMP® technology and are 30% smaller than standard terminal blocks.

Features and Benefits

• 2 Conductors
• Direct plug-in of rigid and flexible conductors with end tips, no tools required
• Simple and quick bridging and test system
• Easy and quick marking/labelling, using click-on markers on the central strip of the terminal block

Wago Feed-Through Terminal Block, 24A Current Rating, 800V Voltage Rating - TOPJOB S 2002 Series - 2002-1301

Completing circuits is a cinch with this feed-through terminal block from Wago. Thanks to its push-in cage clamp terminals, once you've stripped your wires, you simply insert them with no need for any more prep. The clamps keep a firm hold on the setup, even if conditions get shaky. So, you save time on installation and maintenance. This unit takes up to three circuits to simplify electrical installations. For versatility, it handles wire sizes between 22 and 12AWG. At 5.2mm wide, this component effortlessly slots into tight spots on densely packed DIN rails.

Features & Benefits

• 800V voltage rating for use with heavy-duty applications
• Safety-approved to use in potentially explosive environments
• Passes shock tests up to 500g and vibration tests up to 20g for reliability

Applications

• Lighting control systems
• Heating and air conditioning setups
• IT networks
• Telecommunications

What's the current rating of this feed-through terminal block?

The unit has a 24A current rating, which means it has the muscle to handle demanding electrical loads.

How do I mount this feed-through terminal block?

Mounting is as easy as pie – just clip the component onto a DIN rail for installation in a jiffy.

3 Conductor Through Terminal Block
