2002-403, Wago TOPJOB S, 2002 Series Jumper Bar for Use with 2002 Series Terminal Blocks, 25A

Bridge combs and modular connector for TOPJOB 2.5 mm² terminal blocks®S

Bridge combs suitable for TOPJOB®S 2.5 mm² terminal blocks
Grey modular connectors, 1 pole, suitable for TOPJOB®S 2002 terminal blocks. The 2002-501 connector has a connection plug for a Ø 2 mm male banana plug, while the 2002-549 empty enclosure can be used for reducing space.

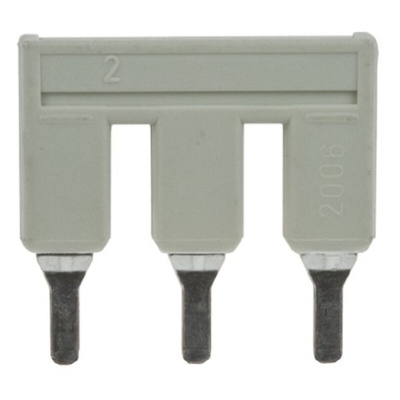

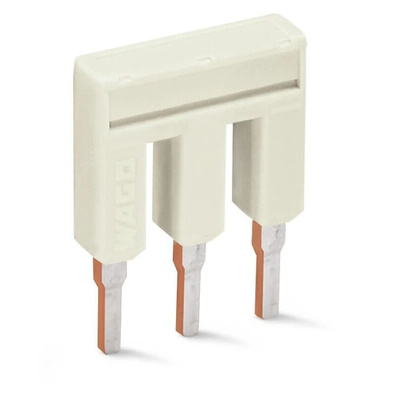

Wago Jumper Bar, 3-Way, 4.1 (H) x 13.8 (W) x 19mm (D) - TOPJOB S 2002 Series - 2002-403

Close the gap between terminal blocks using this jumper bar from Wago. The handy component makes it a cinch to hook up terminals without the hassle of fiddling with delicate wire connections. For convenient continuous commoning, you can insert two jumper contacts into one terminal slot. As the unit simply plugs in, you benefit from speedy assembly and commission, which helps to optimise plant productivity. To reduce the risk of a fire spreading in your control cabinet, this jumper bar is flame-retardant, so it burns only briefly in the event of a blaze.

Features & Benefits

• Current rating of 25A makes it suitable to use with demanding systems
• Compact dimensions of 4.1 (H) x 13.8 (W) x 19mm (D) help to maximise circuit board packing space
• Supplied in packs of 10, so you've got extras on hand

Applications

• Automotive manufacturing
• Food and beverage production
• Process control
• Automated production lines

Is this jumper bar insulated?

Yes, the body of the jumper bar is insulated to protect you against electric shocks.

Push-in type jumper bar insulated 3-way Data Sheet
