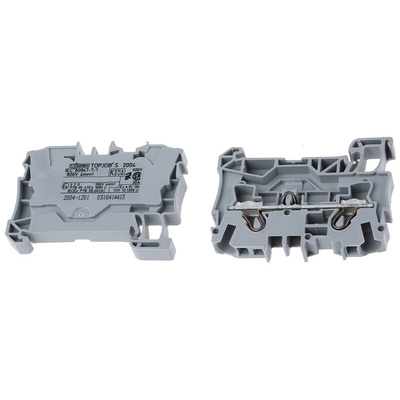

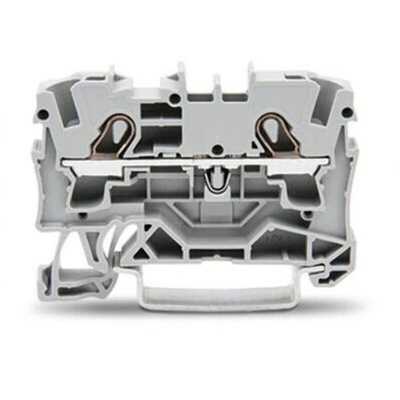

2004-1201, Wago TOPJOB S, 2004 Series Grey Feed Through Terminal Block, 4mm², Single-Level, Push-In Cage Clamp Termination, ATEX,

Wago Feed-Through Terminal Block, 32A Current Rating, 800V Voltage Rating - 2004 Series - 2004-1201

Connect and protect your electrical equipment in unstable environments by installing this feed-through terminal block from Wago. You can run two conductors through it to streamline your setup. This versatile piece of kit accommodates wire sizes from 20 to 10AWG. Push-in cage clamp terminals keep wires firmly in place, while a rugged PA shell safeguards the contacts against impact and wear. The unit performs without a hitch in harsh conditions, thanks to a wide operating temperature range between -60°C and +105°C.

Features & Benefits

• Current rating of 32A for use in heavy-duty applications
• Self-extinguishing material limits spread of fires
• Light weight of 6.9g places minimal strain on your equipment

Applications

• Commercial and domestic appliances
• Industrial control panels
• Distribution boards
• Telecommunications networks

How do I mount this feed-through terminal block?

Mounting is a piece of cake. Just pop the unit onto a DIN rail without the need to reach for any tools.

How big is this feed-through terminal block?

It's a compact component, with dimensions of 52.3 (H) x 6.2 (W) x 32.9mm (D) to maximise space on your DIN rail.

Din Rail Terminal 2x4mm2 Grey
