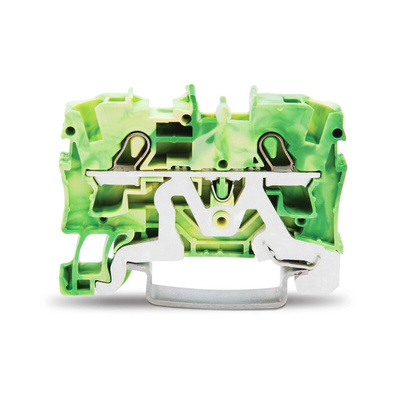

2004-1207, Wago TOPJOB S, 2004 Series Green/Yellow Earth Terminal Block, 4mm², Single-Level, Push-In Cage Clamp Termination, ATEX,

Wago Earth Terminal Block, 10 to 20AWG Wire Size Range, 12.4g Weight - 2004 Series - 2004-1207

Send excess electricity into the ground with this earth terminal block from Wago. It creates a path for overcurrent to safely discharge, which reduces the risk of electric shock and protects equipment against power surges. Cage clamp connections make the unit a cinch to wire without using special tools. Simply push solid or stranded conductors into its terminals, and spring pressure assures you of vibration-proof and maintenance-free attachments. For broad compatibility, this single-level module accepts conductor sizes between 20 and 10AWG.

Features & Benefits

• Front entry connection points for easy maintenance
• Suitable for use in environments where explosive atmospheres are present

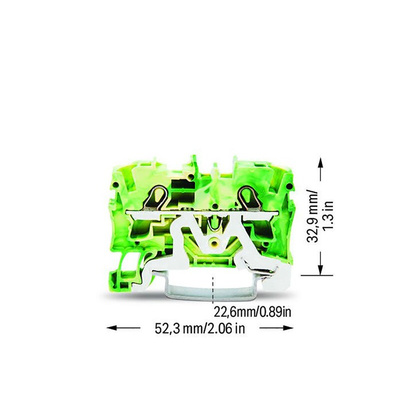

• Maximises packing efficiency, thanks to compact dimensions of 32.9 (H) x 6.2 (W) x 52.3mm (D)
• Snaps onto a DIN rail for speedy mounting

Applications

• Automotive manufacturing
• Power management
• Civil and industrial electrical installations
• Heating and cooling systems

Why is this terminal block green and yellow?

Colour coding on terminal blocks enables quick and easy identification of their type. The green and yellow colours tell you this is a grounding device.

Din Rail Terminal 2x4mm2 Green/Yellow
