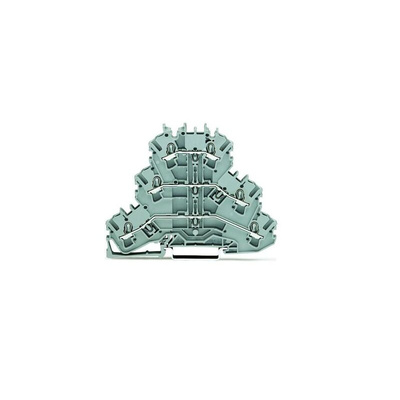

2002-3201, Wago TOPJOB S, 2002 Series Grey Feed Through Terminal Block, 2.5mm², Triple-Level, Push-In Cage Clamp Termination,

Wago DIN Rail Terminal Block, 3 Levels, 24A Current Rating - 2002 Series - 2002-3201

Take your safety setup to another level with this DIN rail terminal block from Wago. It has three levels to stack and organize multiple connections. The unit's stainless steel clamping mechanism makes connecting wires a cinch without the need for crimping. Clip-on markers make it easy as pie to label and identify your connections, so you won’t get your wires crossed when you're testing in a hurry. DIN rail mounting means you can snap it into your system in no time.

Features & Benefits

• Accepts wires ranging in size from 22 to 12AWG for versatility
• Light weight of 16.965g puts minimal strain on your rail
• Compact dimensions of 69.5 (H) x 5.2mm (W) to add minimal bulk to your setup

Applications

• Construction sites
• Telecommunications
• Industrial automation

What is this terminal block’s current rating?

This terminal block has a current rating of 24A, so it's just the thing for use in high-power electrical setups.

Is this terminal block insulated?

Yes, this terminal block features PA insulation that minimises the risk of electric shock for enhanced safety.

TOPJOB S Series

A range of rail-mounted terminal blocks that can fulfill all industrial and Ex applications, as well as those for building installations. Thanks to CAGE CLAMP® S technology, the TOPJOB® S rail-mounted terminal blocks for the DIN 35 carrier rail give a space saving of 30%. The compact size helps minimize costs through the reduction of panel space used, as well as smaller enclosures and junction boxes.

Triple Deck Terminal Block

Datasheet - 2002 - 3201

Installation Sheet - 2002 - 3201
