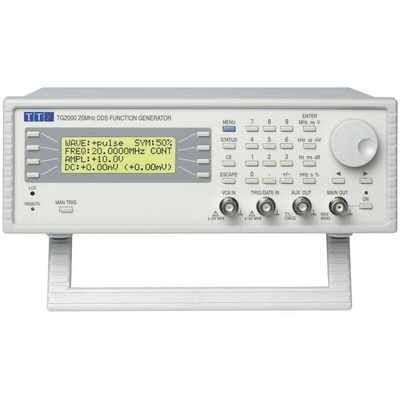

TG2000, Aim-TTi TG 2000 Function Generator, 1mHz Min, 20MHz Max, FM Modulation, Variable Sweep, Генератор функций

Aim-TTi TG1000 & TG2000 DDS Function Generators, 10MHz & 20MHz

The TG1000/2000 offers a high quality direct digital synthesis (DDS) function generator at a significantly lower price. DDS generates waveforms using a phase accumulator, look-up table and DAC. The accuracy/stability of the resulting waveform is related to that of the crystal master clock. When correctly engineered, the DDS generator offers not only exceptional accuracy and stability but also high spectral purity, low phase noise and excellent frequency agility. The TG2000 includes RS-232 and USB interfaces for remote control of all instrument functions and for remotely storing instrument set-ups.

6 digits or 1mHz setting resolution
1ppm stability and better than 10ppm absolute accuracy for one year
Sine, square, triangle, positive pulse and negative pulse waveforms
Internal sweep, linear or logarithmic, phase continuous, 0.1Hz to 20MHz
Modulations modes of sweep, gated, AM, FSK and tone switching - built-in trigger generator
5mV to 20V pk-pk output from 50Ω or 600Ω; plus multi-function auxiliary output
Storage for up to nine complete instrument set-ups in non-volatile memory

Standards

Complies with EN61010-1 and EN61326

Supplied with

Mains lead and full instructions

Aim-TTi Digital Function Generator

The Aim-TTi 20MHz digital function generator is the latest innovation that offers a high-quality, direct digital synthesis (DDS) function at a significantly lower price. DDS generates waveforms using a phase accumulator, look-up table and DAC. The accuracy/stability of the resulting waveform is related to that of the crystal master clock. When correctly engineered, the DDS generator offers not only exceptional accuracy and stability but also, high spectral purity, low phase noise, and excellent frequency agility. The function generator includes RS-232 and USB interfaces for remote control of all instrument functions and for remotely storing instrument set-ups.

Features and Benefits

6 digits or 1mHz setting resolution
1ppm stability and better than 10ppm absolute accuracy for one year
Sine, square, triangle, positive pulse, and negative pulse waveforms
Internal sweep, linear or logarithmic, phase continuous from 0.1Hz to 20MHz
Modulations modes of sweep, gated, AM, FSK, and tone switching built-in trigger generator
5mV to 20V(peak to peak) output from 50Ohms or 600Ohms
plus multi-function auxiliary output
Storage for up to nine complete instrument set-ups in non-volatile memory

Applications

Integrated electronic testing
Educational institutes
Embedded systems
Digital circuits
Analogue signal processing
Laboratories

Certifications

EN61010-1
EN61326
