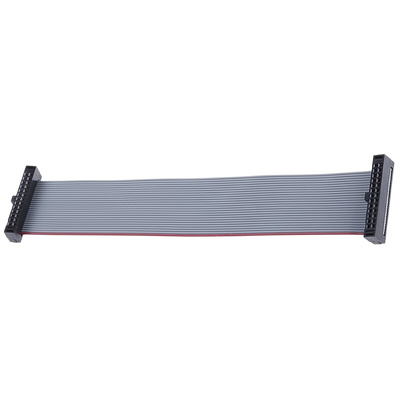

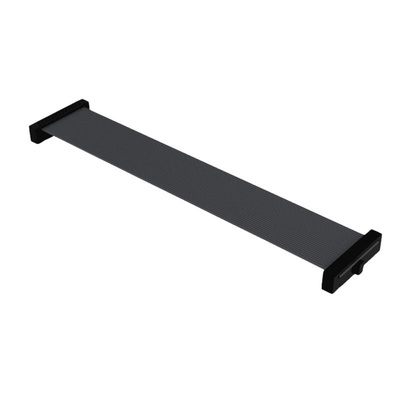

FFSD-13-D-04.00-01-N, Samtec FFSD Series Flat Ribbon Cable, 26-Way, 1.27mm Pitch, 100mm Length, Tiger Eye IDC to Tiger Eye IDC

Samtec Ribbon Cable, 30AWG Wire Size, Unscreened - FFSD Series - FFSD-13-D-04.00-01-N

Pop this Samtec ribbon cable into your setup to send electrical signals to more than one circuit. As it has 26 ways, it provides a compact method for handling multiple signal transmissions. Both ends are terminated with Tiger Eye IDC connectors for convenient insertion to the corresponding sockets. The contacts are plated in tough, corrosion-resistant gold to ensure reliable signal transfer. Thanks to the wide operating temperature range of -40°C to +105°C, it holds its own in demanding working conditions.

Features & Benefits

• Current rating of 0.5A for use in low-powered systems
• 100mm length for convenient short-range connection
• Flat structure to fit into cramped spaces or low-profile enclosures

Applications

• Consumer electronics
• Communications equipment
• Server rooms
• HVAC systems
• Digital displays

What's the pitch size of this ribbon cable?

It has a compact pitch size of 1.27mm to fit small conductors.

Is it easy to align the sockets when plugging it in?

Yes. This cable features a polarizing notch that ensures it only fits into the socket in a specific position, preventing incorrect mating and damage to the conductors.

Datasheet

Datasheet - FFSD-13-D-04.00-01-N
