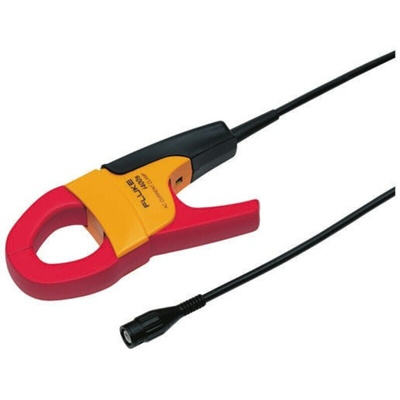

Fluke I400S AC Current Clamp Adapter, Max Current 1kA ac CAT III 1000 V, CAT IV 600 V

AC current clamp i400s BNC output

AC current clamp secured with BNC output.
Accessory for ScopeMeter or Energy Meter capable of measuring currents up to 400 A AC.
When connected to a current clamp certified CAT IV 600 V / CAT III 1 000 V, these solutions are ideal for current CAT IV type measurement instruments.
Compact design for maximum comfort.
To measure the current without disconnecting the circuit.
Soft, moulded non-slip handle.
Two ranges: 40 A and 400 A, output 10 or 1 mV / A.
Max. diameter of conductor: 32 mm.

Fluke Ac Current Clamp

The Fluke clamp measures current rating that ranges between 0.5A and 400A AC. It is a high safety current clamp for digital multimeters. This product provides accurate current measurements without breaking electric circuits, helping you to take measurements safely according to industry-standard safety ratings.

Features and Benefits

1mA/Amp output guarantees easy reading on you meter

Specially designed to offer maximum utility in a compact shape
Take accurate current readings without breaking the circuit
Soft non-slippery overmold handle prevents accidental touching live wiring
Optional PM9081/001 BNC/Banana adapter for DMM's
Maximum conductor size is 32mm
Operating temperature ranges between 0°C and 50°C
For enhancing measuring range of multimeters
Grip with non-slip rubber coating

Certifications

CE
cCSAus
EN61010
EN 61326-1
UL61010-1 listed
CAN/CSA C22.2 No.101.1:2004
CAN/CSA C22.2 No. 101.1:2004
FCC

AC Current Clamp Fluke i400s Instructions
