2961192, Phoenix Contact PCB Mount Power Relay, 24V dc Coil, 8A Switching Current, DPDT, Реле

Phoenix Contact Non-Latching Relays, REL-MR Series

Phoenix contacts REL-MR series of non-latching relays are commonly found within industrial environments, they are considered to be electrical and mechanical devices. This type of relay can often be referred to an electromechanical relay or an industrial switch.

Features & Benefits

• Pluggable miniature relays, with power contact for high continuous current
• Varied switching current dependant on the relay chosen from the REL-MR series
• Pluggable miniature relay - compact in size
• Additional hard gold plating
• AC and DC coil voltages
• Robust and hard wearing

What is a non-latching relay and how do they work?

A relay is an electrical switch that is operated by electrical pulses, their primary function is to open and close a circuit. When power passes through a circuit, a relay switches position (usually from NC to NO) using an internal coil which generates a magnetic force. This force then holds the relay in a NO position, when the current is switched off the relay returns to the NC position. This function is what makes these non-latching relays perfect for push-button applications such as keyboards and micro-controller input buttons.

A little more info

Non-latching relays support a range of signal characteristics, ranging from low voltage or current to high voltage or current and from DC to GHz frequencies.

What is the difference between a latching relay and a non-latching relay?

• When a latching relay operates its contacts, the relay holds its position, even when the supply of its operating coil has been disconnected.
• When a non-latching relay operates its contacts, the relay will reset automatically once the supply of its coil is disconnected through the internal spring mechanism.

Standards

IEC 60255, EN 50178, EN 60730, IEC 60664

Approvals

DIN VDE 0435, DIN VDE 0160, DIN VDE 0631, DIN VDE 0110

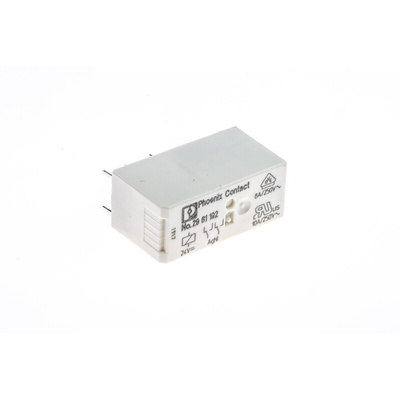

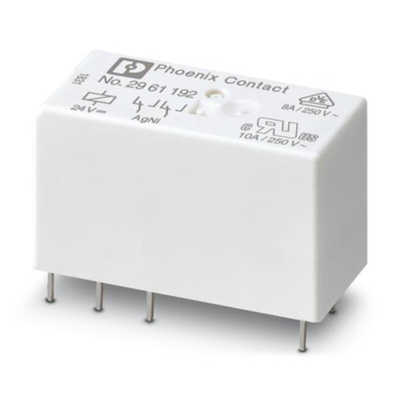

Phoenix Contact Non-Latching Relay, 8A Switching Current, 24V DC Coil Voltage - REL-MR- 24DC/21-21-2961192

Use this wash-proof relay from Phoenix Contact for your switching operations in industrial environments. It's a non-latching type, which means that it switches from an NC (normally closed) position to an NO (normally open) position when power passes through the circuit. When the current flow stops, the relay automatically returns to the NC position thanks to an internal spring mechanism. This makes it an ideal component for use with pushbutton applications, such as micro-controller input buttons or keyboards.
The unit weighs just 15.94g, so it's easy to handle and won't cause any unnecessary strain on your system. This type of non-latching relay is frequently installed in domestic appliances, vehicles or telecommunications equipment.

• Operating temperature range of -40°C to +85°C for use in a wide range of environments
• Mountable in any position for maximum versatility
• Mechanical service life of 30,000,000 cycles to deliver reliable long-term performance and minimal maintenance
• Compact dimensions of 15.7 (H) x 12.7 (W) x 29mm (H) takes up minimal space on circuit boards
• Contacts made of silver nickel (AgNi), which is highly conductive and corrosion-resistant

Datasheet 2961192
