RS PRO 64 Way 2.54mm Pitch, Type C Class C1, 2 Row, Straight DIN 41612 Connector, Socket, Разъем

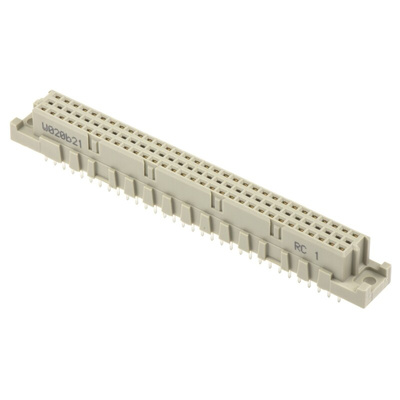

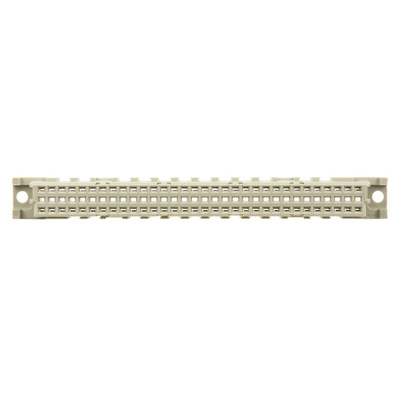

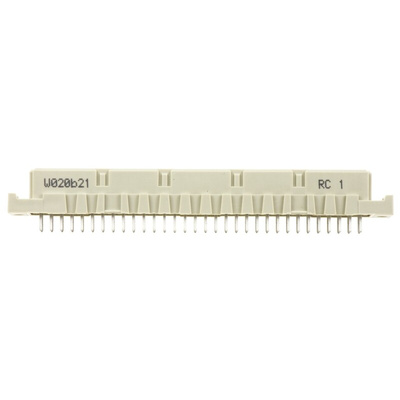

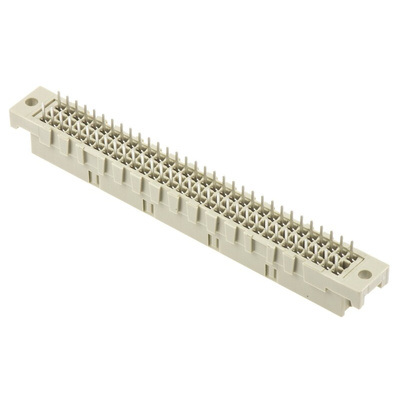

RS PRO 64 Way Socket, Class C1, Straight DIN 41612 Connector, 2 Row, 2.54 mm Pitch

Add extra termination points to your printed circuit board (PCB) with this 64-way socket from RS PRO. It's easily attached to a DIN rail and is a useful component in complex industrial control cabinets.
The socket's compact design allows for the maximum number of contacts while taking up minimal space on your PCB. Its polybutylene terephthalate (PBT) housing has excellent heat resistance so it remains efficient, even when exposed to hot conditions. This robust plastic also helps protect sensitive electrical connections. Its brass contacts are rust-resistant, which means they're not adversely affected by the presence of moisture.
Use this product in any low voltage industrial application, where it will provide a fast and secure connection. Edge connectors such as this one are commonly found in electronics such as PCs and peripherals.

Features and Benefits

• Straight body orientation
• C1 class rating
• Brass contact material
• Gold-over-nickel contact plating
• PBT housing material
• Maximum contact resistance of 20 mΩ
• Operating temperature range of -55°C to +125°C
• 64 contacts
• Two rows
• Pitch of 2.54 mm
• a/b row loading
• Solder termination method
• Type C, female socket
• Current rating of 2 A
• Voltage rating of 1 kV

RS Pro Datasheet
