Aoip Instrumentation CALYS 50 Multi Function Calibrator, 20mA, 50V, Многофункциональный калибратор

Aoip Instrumentation Calibrator

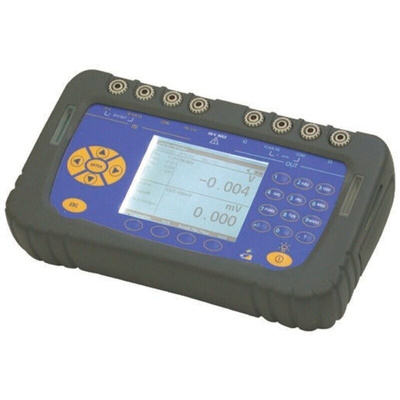

The Aoip Instrumentation calibrator is a basic multifunction calibrator from the CALYS range. It is the perfect tool for advanced process maintenance and can be used on the test bench in many industries. It is suitable for both field and lab measurements. This product can simultaneously measure and generate over two isolated channels, various signals of temperature, resistance, process and frequency in one single instrument. This calibrator is fully protected by an antichoc rubber holster. It integrates "easy connect" terminals and a wide backlit display that makes it easy to use in low light conditions. This tool gathers all the signals in the manufacturing process: voltage, current, resistance, temperature using resistance probes and thermocouples, frequency, counting and measurement and simulation of dry contacts.

Features and Benefits

Simultaneous measures and simulates current range up to 50mA and voltage up to 50V IN / 20V OUT range
Double display (measurement/emission) screen with an indication of date/time and ambient temperature
'Easy connect", ultra-simple connection system, which accepts sockets, bare wires, terminals and banana plugs as well as flat thermocouple connectors
Graphic screen display with date and time, backlit with adjustable contrast
Selectable display resolution of 1, 2 or 3 digits after the decimal point
Display of measurement statistics for min, max and average values
Emission of ramps and increments to test the linearity and the range of transmitters, with retarder function
Integrated valve test
Scaling for quadratic and linear signals
Scaling for sensor correction
Compatible with HART transmitters
USB port for downloading software
Supplied with measurement wires, strap and stand

Applications

Process control automation
Manufacturing
Instrumentation

Certifications

IP54 rated
