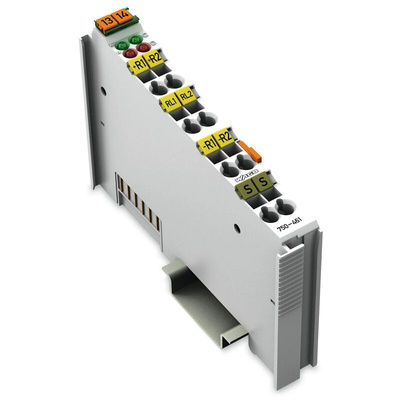

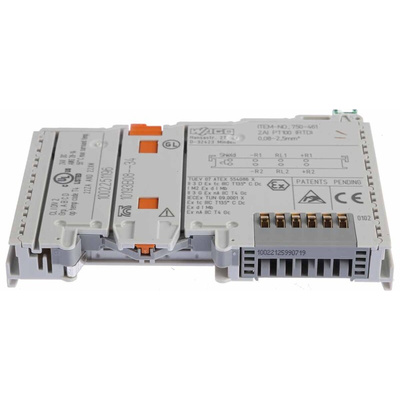

750461, Wago CJ2 Series PLC I/O Module for Use with 750 Series, Analogue, 5 V dc, Модуль

Wago PLC I/O Module, 28 to 14AWG Wire Size Range, 80mA Current Consumption - CJ2 Series - 750461

Choose this PLC I/O module from Wago to link temperature sensing equipment with your processor. You can use it in conjunction with Pt100 sensors to reliably measure temperatures in your setup. Two analogue channels mean double the sensing capacity to boost your measuring ability. The housing is made of PC and PA, so it stands up to impact and corrosion for a long service life in harsh environments. It's a cinch to wire up without any tools, thanks to its cage clamp terminals.

Features & Benefits

• Maximum response time of 4s for quick results
• IP20 rating means it's touchproof and protected against wires or tools larger than 12mm in size
• LEDs signal operating status for monitoring at a glance
• Compact dimensions of 100 (L) x 12 (W) x 64mm (D), so it's a space-efficient choice

Applications

• Automotive manufacturing
• Factory automation
• Power engineering

How much does this PLC I/O module weigh?

This PLC I/O module only weighs 52.5g, so it doesn't add excess load to your setup.

Can I use this device in harsh industrial conditions?

Yes. This unit delivers reliable performance in temperatures between 0°C and +55°C, so it's ideal for use in harsh industrial conditions.

750461m

Datasheet
