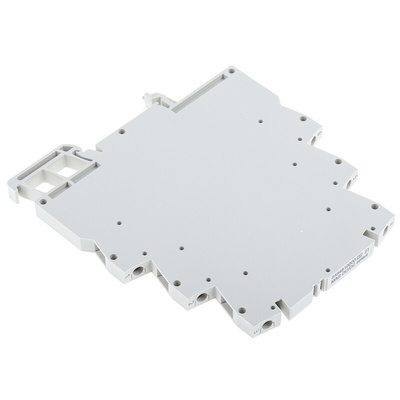

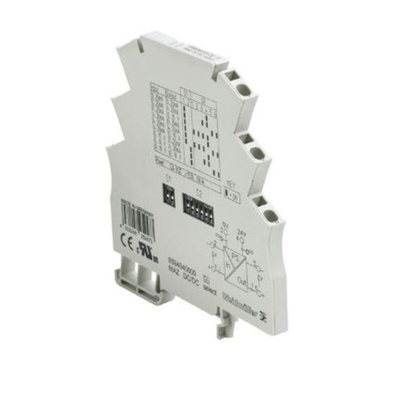

8594810000, Weidmuller ACT20X Series Signal Conditioner, Current, Voltage Input, Current, Voltage Output, 24V dc Supply

Micro Analogue

Ultra-slimline, fully configurable DIN rail mounting signal conditioners.

Universally adjustable via DIP switch
2 way isolation between input/output and supply
Low power consumption
Screw connection

Weidmuller Signal Conditioner, 0 to 10V Input Voltage, 0 to 20mA Output Current - ACT20X Series - 8594810000

This signal conditioner from Weidmuller adapts your sensor readings for ease of data analysis. Its input and output voltage ranges of 0 to 10V mean it's suitable for use in low-power systems. Thanks to the unit's DIP switch, it's easy to select your chosen input and output signals for convenient conditioning. The module's cut-off frequency of over 100Hz gives you reliable signal conversion in demanding applications.

Features & Benefits

• Low power consumption of 0.6W for energy-efficient operation
• Compact dimensions of 88 (L) x 6.1 (W) x 97.8mm (D) for mounting in crowded spaces
• Wiring and DIP switch guides printed on rear face for ease of use
• Broad operating temperature range between 0°C and +55°C for use in demanding environments

Applications

• Laboratory testing
• Food production
• Automotive industry

What's the supply voltage of this signal conditioner?

This signal conditioner has a supply voltage of 24V DC for use in low-voltage applications.

How do I connect wires to this signal conditioner?

This signal conditioner uses screw connections for secure and reliable wiring.
