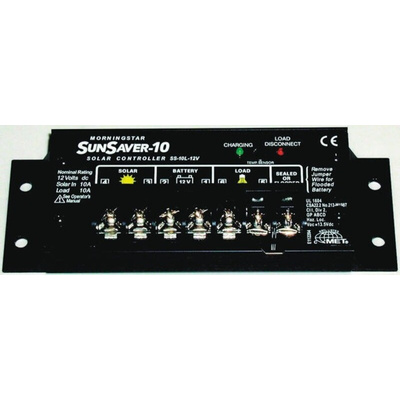

Morningstar SS-10L-12 10A solar charge controller, Регулятор

Solar Controllers

SunSaver & SunLight Controllers

12Vnom., 10A solar panel controllers
PWM battery charging
Low Voltage disconnect
100% solid state
Set-point accuracy to 35mV
Rated for 25% overloads
Fully encapsulated in epoxy potting
Temperature compensation
Sealed/flooded battery type select
Green charging and red low voltage disconnect indicators

Sunlight-10 controller only

Microcontroller for automatic lighting control
Rotary digital switch to select 10 lighting control options (Off, 2-hours On, 4-hours On, 6-hours On, 8-hours On, 10-hours On, 3/Off/1, 4/Off/2, Dusk-to-Dawn)
Manual test capability
LVD override protection
Detects day and night using the PV array

Datasheet

SOLAR CONTROLLER Type SS Operators Manual
