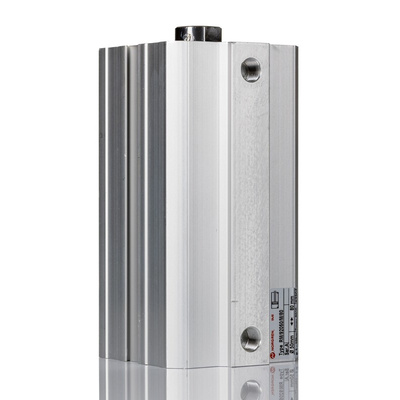

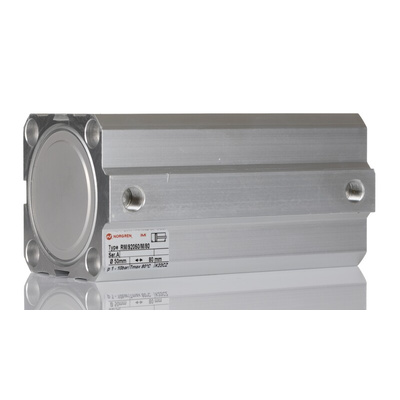

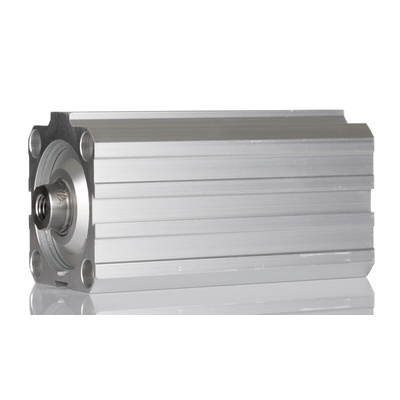

RM/92050/M/80, Norgren Pneumatic Compact Cylinder - 50mm Bore, 80mm Stroke, RM/92000/M Series, Double Acting, Цилиндр

IMI Norgren Pneumatic Compact Cylinder, 10 Bar Maximum Operating Pressure, Double Acting - RM/92000/M Series - RM/92050/M/80

To control your system's push and pull, fit this pneumatic compact cylinder from IMI Norgren. It converts the power of compressed air into linear motion for tasks such as positioning or lifting objects. To minimise friction and ensure consistent function, it features polyurethane nitrile rubber seals. A piston rod made of stainless steel resists impact damage and prolongs the unit's service life. Thanks to slim dimensions of 133 (L) x 63 (H) x 63mm (W), this unit fits neatly into confined spaces.

Features & Benefits

• Anodised aluminium alloy barrel and end caps provide corrosion resistance to endure tough conditions
• G1/8 port for compatibility with standard pneumatic systems
• Performs reliably in temperatures between -5°C and +80°C
• Operational pressure between 1 and 10 bar for use with low-pressure and medium-pressure applications

Applications

• Assembly lines
• Robotics systems
• Food and beverage production
• Textile machinery

What's the advantage of a double-acting cylinder?

A double-acting cylinder like this is driven by air in both directions, so you can be sure of its repeatable accuracy.

How much does this cylinder weigh?

It weighs 3.3kg, so it's a sturdy option that's still easy to handle.
