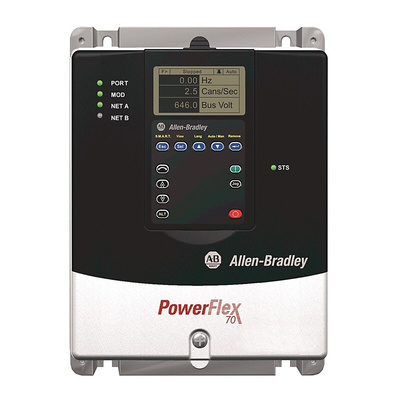

20AC8P7A0AYNANC0, Allen Bradley Inverter Drive, 4 kW, 3 Phase, 400 V ac, 8.7 A, PowerFlex 70 Series

PowerFlex 70 AC Drive - Without Operator Keypad Module

Zero Stacking - compact design and mounting drives side by side with no air gap saves valuable panel space
Integrated EMC filter for out-of-the-box performance
PC Tools such as DriveExplorer™ are available to assist with programming, monitoring and troubleshooting
Software configurable inputs
Configurable acceleration/deceleration ramps
7 drive protection features including under/over voltage and short-circuit protection
Slip compensation for 0.5% speed regulation
LCD operator interface option covering all major European languages
Flying Start for connection into rotating loads
Inertia Ride-Through offers tripless operation during a power dip
Three phase

Allen Bradley Inverter Drive, For AC Motors, 8.7A Continuous Drive Output - PowerFlex 70 Series - 20AC8P7A0AYNANC0

Power through industrial tasks with this inverter drive from Rockwell Automation's Allen Bradley range. It lets you convert AC current into a DC energy supply with precise control, so you benefit from smooth output and minimal risk of device damage. The unit's pinpoint accuracy means you can reduce power loss or wastage, kicking your plant efficiency up a notch. Zero stacking offers maximum packing efficiency, as the unit doesn't need space to blow off steam. This inverter speaks your language, thanks to its multilingual capabilities that allow you to programme and operate it with ease.

Features & Benefits

• Integrated DC choke to efficiently filter and control the drive's voltage and current
• Built-in RFI filter and dynamic breaking transistor, so there's less need for external add-on modules
• Electromagnetically compatible, which minimises the chance of crosstalk with nearby electronic equipment

Standards and Certifications

• UL
• CSA
• CE
• C-Tick

What type of equipment can I use with this inverter drive?

This inverter drive is suitable to pair with commonly used equipment and appliances, such as fans, pumps and compressors.

Data Sheet

Datasheet - 20AC8P7A0AYNANC0
