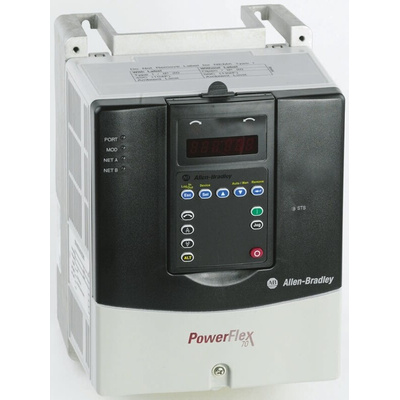

20AC011A0AYNANC0, Allen Bradley Inverter Drive, 5.5 kW, 3 Phase, 400 V ac, 11.5 A, PowerFlex 70 Series

PowerFlex 70 AC Drive - Without Operator Keypad Module

Zero Stacking - compact design and mounting drives side by side with no air gap saves valuable panel space
Integrated EMC filter for out-of-the-box performance
PC Tools such as DriveExplorer™ are available to assist with programming, monitoring and troubleshooting
Software configurable inputs
Configurable acceleration/deceleration ramps
7 drive protection features including under/over voltage and short-circuit protection
Slip compensation for 0.5% speed regulation
LCD operator interface option covering all major European languages
Flying Start for connection into rotating loads
Inertia Ride-Through offers tripless operation during a power dip
Three phase

Allen Bradley Inverter Drive, 400V AC, 11.5A - PowerFlex 70 Series - 20AC011A0AYNANC0

This Allen Bradley inverter drive from Rockwell Automation brings world-leading alternating current (AC) motor control standards to industrial applications. Choose it to accurately control and monitor the motor speed of equipment such as conveyors, pumps and fans. Its broad spectrum of features lets you easily configure your drive for most applications. A dynamic braking resistor dramatically reduces the time needed for a motor to stop and also eliminates the risk of over-voltage faults, for improved safety and reliability. This high-performance inverter is well-suited to demanding applications.

Features and Benefits

• Smart technology allows for fast and easy set-up in multiple languages
• IP66 (ingress protection) rated enclosure that's completely protected from dust and high-pressure water jets
• Compact in size, with dimensions of 300 (L) x 185 (W) x 179.8mm (D)
• Includes a noise filter to keep radio frequency at acceptable and safe levels
• Flying start for simple connection into rotational loads

Standards and certifications

• EN61800-3 (European Norm)
• UL (Underwriters' Laboratories)
• CE (Conformitè Europëenne)

How do you configure this device?

The Allen Bradley PowerFlex 700 inverter drive can be configured with DriveLogix, an embedded logic controller with multiple programming languages.

Data Sheet
