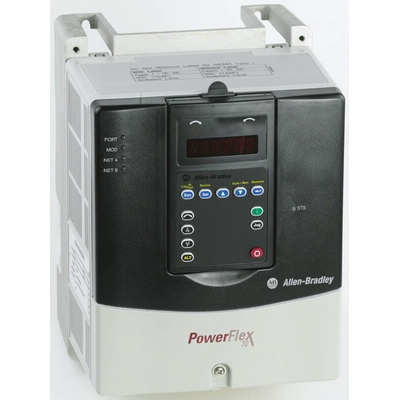

20AC030A0AYNANC0, Allen Bradley Inverter Drive, 15 kW, 3 Phase, 400 V ac, 30 A, PowerFlex 70 Series

PowerFlex 70 AC Drive - Without Operator Keypad Module

Zero Stacking - compact design and mounting drives side by side with no air gap saves valuable panel space
Integrated EMC filter for out-of-the-box performance
PC Tools such as DriveExplorer™ are available to assist with programming, monitoring and troubleshooting
Software configurable inputs
Configurable acceleration/deceleration ramps
7 drive protection features including under/over voltage and short-circuit protection
Slip compensation for 0.5% speed regulation
LCD operator interface option covering all major European languages
Flying Start for connection into rotating loads
Inertia Ride-Through offers tripless operation during a power dip
Three phase

Allen Bradley Inverter Drive, 400V AC, 30A - PowerFlex 70 Series - 20AC030A0AYNANC0

This inverter drive from Rockwell Automation's Allen Bradley range combines power and optimal control with a user-friendly interface. use it to regulate speed and torque in industrial motors. Also known as a variable frequency drive (VFD), this high-performance component works by converting AC mains voltage to 3-phase DC voltage used to power and coordinate motor rotation. It has an Ethernet interface that lets you remotely configure transmission control protocol (TCP) and internet protocol (IP) networks. It's an essential component in the manufacturing industry, where it's used to coordinate conveyor speed and synchronisation.

Features and Benefits

• Inertia ride-through offers tripless operation during a power dip to reduce downtime
• Zero stacking feature lets you mount drives side-by-side without air gaps, for more efficient storage and space-saving
• LCD (liquid crystal display) operator interface option covering all major European languages for general accessibility
• IP66 (Ingress Protection) rating assures you it's dust and water-resistant

Standards and certification

• BS EN 61340-5-1:2007 (Electrostatic Control Standards, UK)
• ANSI/ESD S20.20:2014 (Electrostatic Control Standards, global)

What are the voltage and current ratings of this drive?

This drive has a supply voltage of 400V AC and a current rating of 30A.

Data Sheet
