507RIO01895, McLennan Servo Supplies McLennan Cable for Use with Stepper Drives, 1m Length

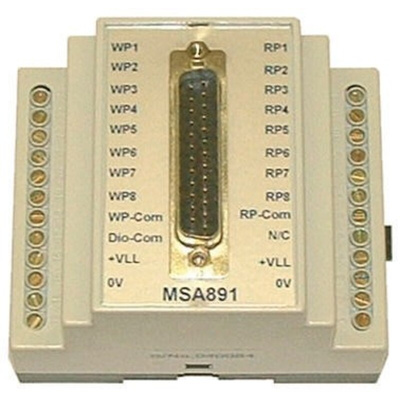

I/O Breakout Box

The I/O breakout box features screw terminals to enable the 16 digital I/O (8 input/8output) to be easily connected.,The unit is DIN-rail mounted and can be sited next to a typical PLC control unit.

Sim-Step

Sim-Step offers a complete packaged system that is ready to use straight out of the box. Use the colour coded cables & accessories to simplify connections.,Sim-Step is supplied complete with ac supply cable, RS232 cable and terminator. Motor and colour coded datum / limit cables together with the junction box are purchased separately to interconnect the system.,Use the I/O breakout box (510-0492) & cable (510-0509) for integration in systems that require interaction with other machine functions. The programmable digital I/O is particularly useful when developing sequences for stand-alone operation.,The jog box (510-0515) can be used to manually control two Sim-Step units ,Sim-Step provides optional closed-loop control when an encoder is connected to the system using the encoder cable (510-0458 or 510-0470)
