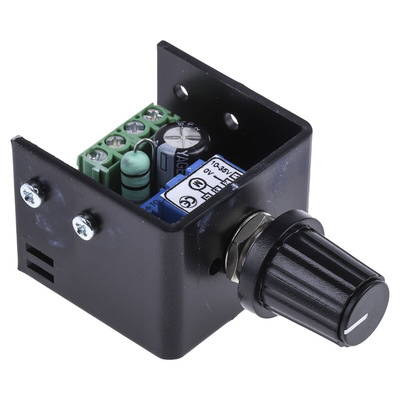

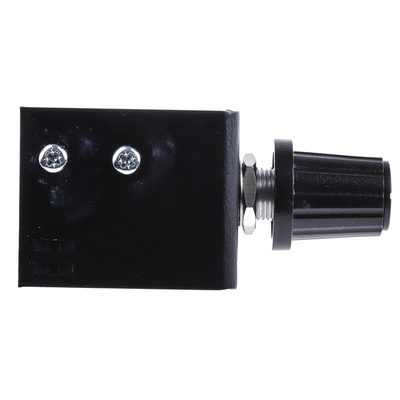

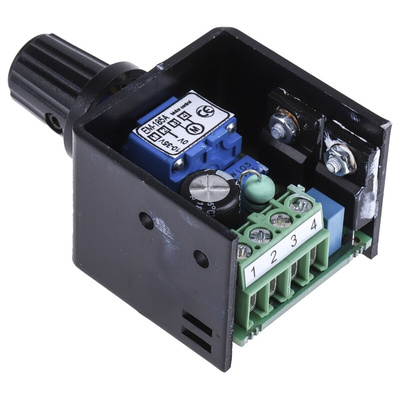

EM185, Electromen OY DC Motor Controller, 12 → 24 V dc, 3 A, 35 V, Контроллер

EM-185 DC Motor Speed Regulator

The motor drive is a PWM-based DC-motor driver. The materials and features meet the industrial environment requirements. The device is CE marked and has been tested through EMC measurements required by industrial environment.Motor voltage is regulated against supply voltage changes, and there is also a load compensation (RxI) adjustment. Thanks to these features drive offers good performance in motor speed control applications. The current limit and the rpm range are adjustable with trimmer potentiometers. The power stage of the device is protected against short-circuit and overload (over temp.).The drive is easy to mount in a 10mm hole in an assembly panel.

Features & Benefits

1 Quadrant
Panel mountable
Small size
Motor power 5-80W
Load compensation Rxl
Adjustable current limit
EMC tested (CE marked)
Overload and short circuit protected

Electromen - EM-185 3A 12-32VDC POTENTIOMETER DRIVE BOARD

The EM-185 is a PWM-based DC-motor driver developed for industrial environment applications. The unit is packaged for very easy panel mounting by means of a Ø10mm through hole.The drive has very low RF emissions and is suitable for use in in critical electromagnetic environments including medical.Motor voltage is regulated against supply voltage changes and also offers load compensation adjustment.Current limit and speed range are adjusted with onboard trim pots.
The power stage of the device is protected against short-circuit and over temperature situations

Features and Benefits

12-24Vdc, 3A continuous, 6A peak
Speed control without loss of torque
Adjustable current limit
Direct mounting to control panel
Smooth PWM speed regulation
Suitable for 5-80W brushed DC motors
Easy direct mounting to panel (Ø10mm hole)
Load compensation
Adjustable current limit
Overload and short-circuit protection
Low RF emissions
Compact size

EM-185 DC-Motor Speed Regulator
