Omron Programmable Logic Controller

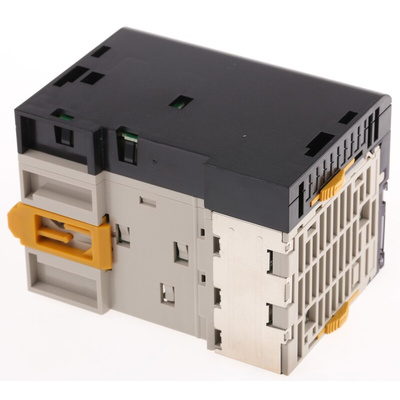

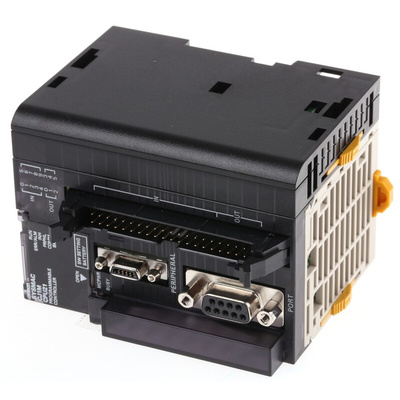

The Omron CJ1M is a programmable logic controller(PLC) with pulse output and DeviceNet networking computer interface. It has 5K steps program capacity and built-in 10 inputs, 6 outputs. It issued with SYSMAC CJ Series. The CJ1M is the next generation of PLC from the earlier CQM1 series and program compatibility eases migration between them. As with other Omron PLCs, the CJ1M series is programmed with CX-Programmer. The backplane-less construction makes selection and installation simple

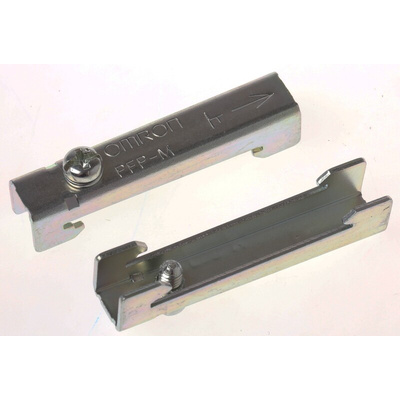

choose the CPU and power supply unit, then the I/O modules to suit the application. All these modules can be simply plugged together end-to-end and then mounted on a DIN rail. It has a compact flash card slot for optional program and data storage in CSV format, ideal for data/alarm logging and recipe handling as these files can be handled with standard spreadsheet software. Additionally, files of any other format can be stored, such as technical machine files in pdf format.

Features and Benefits

Host Link, RS232C communication port type
Versatile machine control with the highest performance standards in the industry
Super compact design that meets the highest standards in its class that even a narrow space in a machine serves as a control panel
10 digital inputs, 2 pulse outputs, 1PWM output, 3 solid-state output
Suitable for essentially any application, from small devices and temperature control, to large scale control over networks
Words data memory capacity of 32k
Operating temperature ranges between 0°C and 55°C

Applications

Industrial automation
Robotics
Automobiles industry

Certifications

IEC61131-3
CE
cULus approved
Lloyd approved
NK certified
