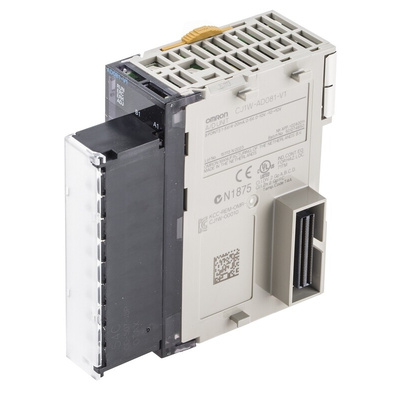

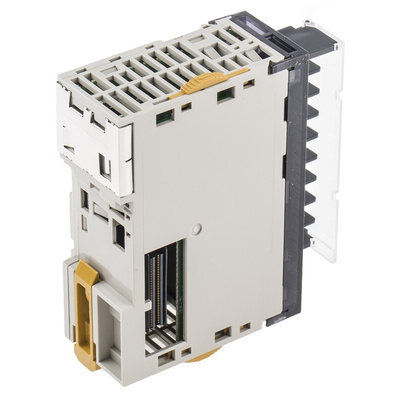

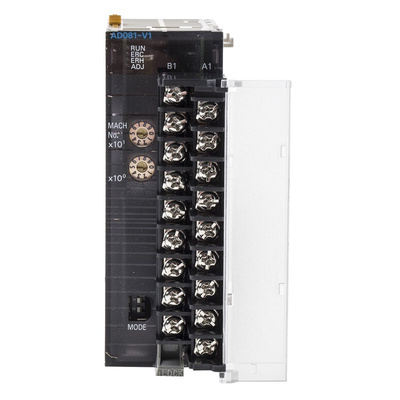

CJ1W-AD081-V1, Omron SYSMAC CJ Series, SYSMAC CP1H, SYSMAC CP1L Series PLC I/O Module for Use with SYSMAC CJ Series, SYSMAC CP1H, Модуль

Omron PLC Extension Module

The Omron PLC extension module is an input interface for communicating with analogue signals. Analogue modules are clipped together to the right of the CPU along with other extension modules. The input units perform the function of converting analogue input signals into binary data and analogue output units perform the function of converting binary data into analogue output signals. It has many advanced functions that include line disconnection detection, output holding, offset/gain adjustment, scaling, input averaging, input peak value holding and ratio conversion.

Features and Benefits

High-speed A/D conversion in 20μs/point with direct conversion function
It has 5 signal ranges: 1V to 5V, 0V to 5V, 0V to 10 V, -10V to 10V, 4mA to 20mA
It has 8 analogue inputs
DIN rail type mounting

Applications

Industrial automation
Robotics
Automobiles industry

Certifications

UC1 certified
N certified
L certified
CE
UL certified
