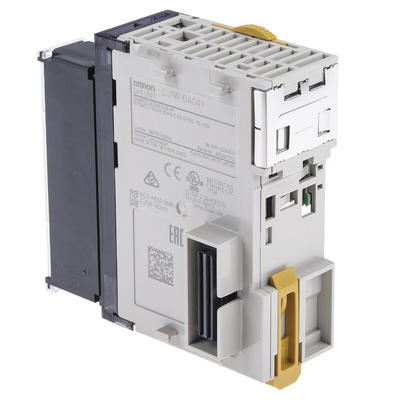

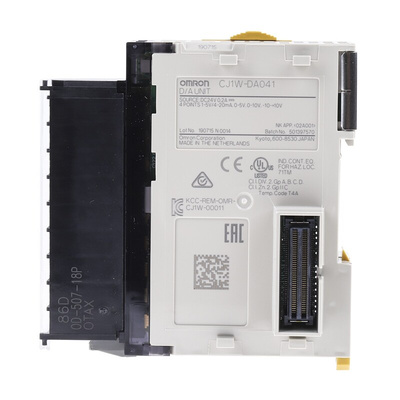

CJ1W-DA041, Omron CJ Series Series PLC I/O Module for Use with CJ Series, Analogue, Модуль

Omron PLC Extension Module

The Omron programmable logic controller(PLC) extension I/O module is a 4 output interface for communicating with analogue signals. Analogue modules are clipped together to the right of the CPU along with other extension modules. It has a voltage rating of 24VDC with 12mA current. The input units perform the function of converting analogue input signals into binary data and analogue output units perform the function of converting binary data into analogue output signals. It has many advanced functions that include line disconnection detection, output holding, offset/gain adjustment, scaling, input averaging, input peak value holding and ratio conversion.

Features and Benefits

High-speed D/A conversion in 20μs/point with direct conversion function
It has 5 signal ranges: 1V to 5V, 0V to 5V, 0V to 10V, -10V to 10V, 4mA to 20mA
DIN rail type mount

Applications

Industrial automation
Robotics
Automobiles industry

Certifications

UC1 certified
CE
cULus certified
Lloyd certified
NK certified
