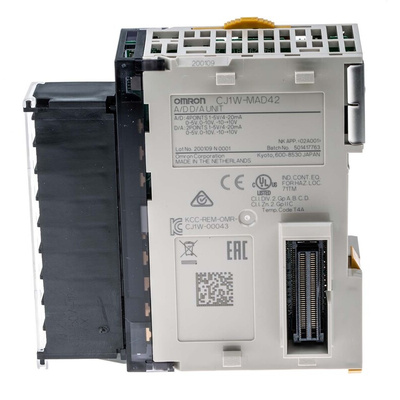

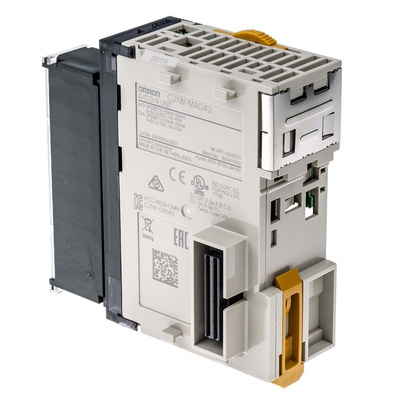

CJ1W-MAD42, Omron PLC Expansion Module for Use with SYSMAC CJ Series, Analogue, Analogue, Модуль расширения

Omron PLC Expansion Module

The Omron PLC expansion module has 4 inputs and 2 outputs. It has many advanced functions like line disconnection detection, input averaging, scaling, input peak value holding, output holding, ratio conversion and offset/ gain adjustment. Direct conversion instructions for high-speed type can be used to create a consistent response time from input through data processing and output. This module is used with SYSMAC CJ Series. It is available with a width of 31mm, height of 90mm and a depth of 89mm.
Omron CJ1M digital and analogue I/O modules
CJ1 digital I/O, analogue I/O and communication modules clip together to the right of the CPU in any combination up to a maximum of 10 modules. Further 10 modules can be connected to a CJ1M-CPU13 or CJ1M-CPU23 based system as part of an expansion assembly.
Dimensions: Height- 90mm, Width- 31mm, Depth- 89mm
All the modules have removable screw terminal blocks for I/O connections, except screwless (SL).

Features and Benefits

18-point detachable terminal block (M3 screws)
DIN rail mounting
LED indicator type display

Applications

Industrial automation
Robotics
Automobiles industry

Certifications

CE
cULus approved
Lloyd approved
NK certified
UC1 listed
