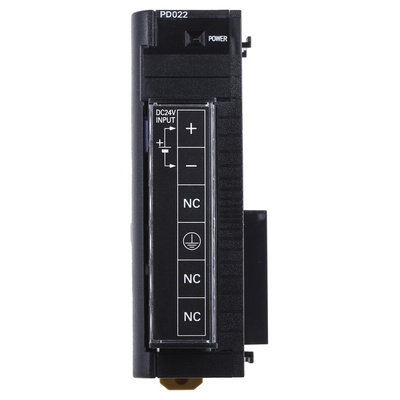

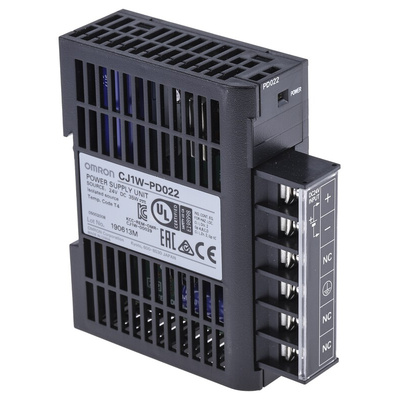

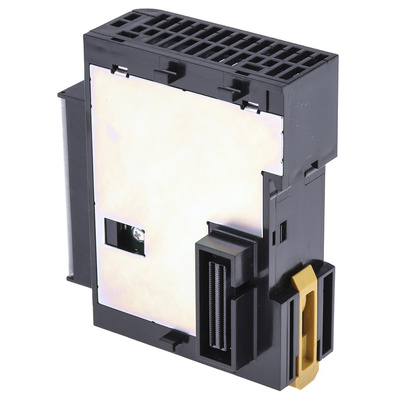

CJ1W-PD022, Omron CJ1W Series PLC Power Supply for Use with CJ1M Series, Блок питания

CJ1M PSU's

Used to provide power to CJ1M CPUs and I/O units
ac and dc supply versions available
Clips to the left of the CPU
Also used to power expansion I/O assembly

Note

The output currents stated are maximum figures. The combined 5Vdc and 24Vdc outputs must not exceed the maximum output power

Omron CJ1M CPU's, PSU's and Expansion Control/Interface Modules

The CJ1M is a powerful and compact PLC family, covering applications requiring up to 640 I/O. CPU models are available with built in pulse outputs for stepper or servo control, and all CPUs in the CJ1M family enjoy optional modules for many types of I/O and communications. The CJ1M is the next generation of PLC from the earlier CQM1 series, and program compatibility eases migration between them.As with other Omron PLCs, the CJ1M series is programmed with CX-Programmer (RS stock no. 400-6440), designed for compliance with IEC61131-3. The backplane-less construction of the CJ1M series makes selection and installation simple; choose the CPU and power supply unit, then the I/O modules to suit the application. These items are simply plugged together end to end and then mounted on DIN rail.
