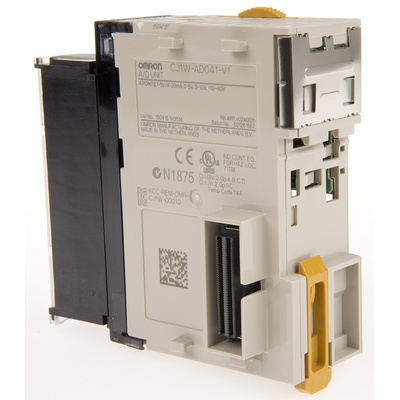

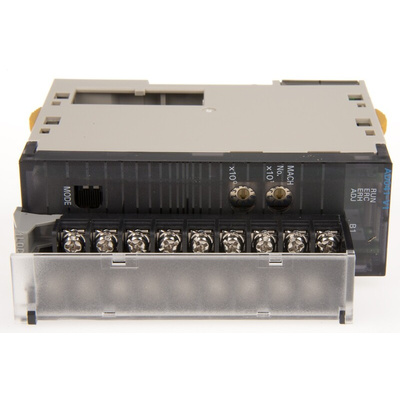

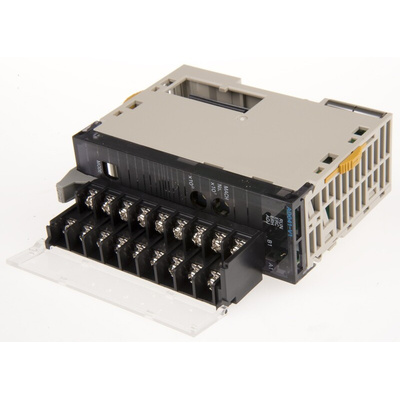

CJ1W-AD041, Omron SYSMAC CJ Series, SYSMAC CP1H, SYSMAC CP1L Series PLC I/O Module for Use with SYSMAC CJ Series, SYSMAC CP1H, Модуль

Analogue I/O Modules

All offer the following ranges: 0-5V, 0-10V, 1-5V, ±10V and 4-20mA
Resolution: 12 bit (510-1423 and 512-5946 are 11 bit)
Input up to eight analog signals with one unit

Omron CJ1M Digital and Analogue I/O Modules

CJ1 Digital I/O, Analogue I/O, and Communication modules clip together to the right of the CPU in any combination up to a maximum of 10 modules. A further 10 modules can be connected to a CJ1M-CPU13 or CJ1M-CPU23 based system as part of an expansion assembly.

Dimensions: Height 90mm, Width 31mm, Depth 89mm
All modules have removable screw terminal blocks for I/O connections, except screwless (SL)
