4500FE.00100, Belden Control Cable, 2 Cores, 0.33 mm², Screened, 100m, Grey Flame Retardant Non-Corrosive (FRNC) Sheath, 22 AWG, Кабель

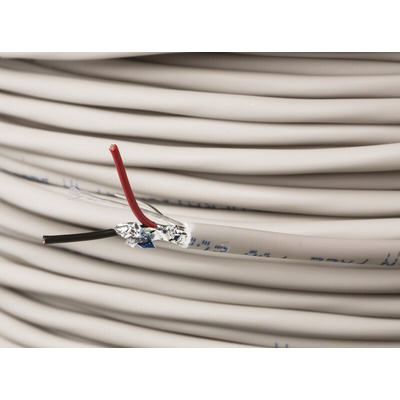

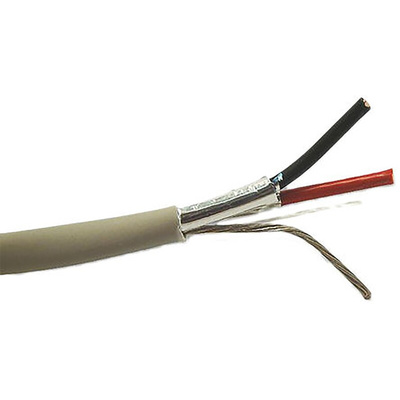

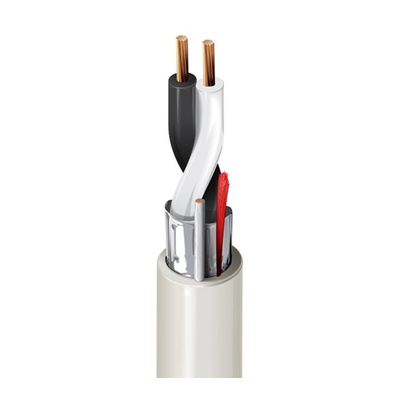

Belden Screened Grey Control Cable, 0.33mm² CSA, 100m Length - 4500FE.00100

Turn to this control cable from Belden when you need to send data and transmissions between your electronic equipment and control panels. It features an aluminium foil screen to reduce EMI (electromagnetic interference), meaning signals travelling through the cable won't affect or be impaired by nearby equipment and wiring. The cable produces minimal smoke in the case of fire thanks to its FRNC (flame retardant non-corrosive) sheath material, making it a safe choice for commercial and residential use.

Features & Benefits

• Bare copper strands provide high conductivity
• Durable and abrasion-resistant PVC sheath for a long service life
• 100m length can be cut to suit your application's needs
• Cross-sectional area (CSA) of 0.33 mm² for flexibility and use in tight spaces
• Wide operating temperature range between -20°C and +70°C for use in challenging settings

Applications

• Industrial automation
• Security equipment
• Office infrastructure
• Broadcasting

What does a drain wire do in a control cable?

The drain wire in a control cable works alongside the metallic shield to provide effective grounding and draw electrical noise away from the circuit. This allows for error-free and direct signal transmission.

Datasheet

Cable Selection Guide
