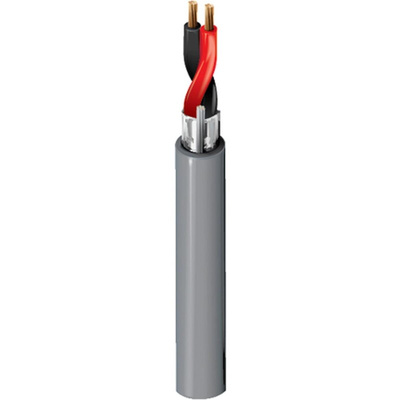

5300FE.00152, Belden Control Cable, 2 Cores, 0.82 mm², Screened, 152m, Grey PVC Sheath, 18 AWG, Кабель

Belden 2-Core Screened Control Cable, 152m Length, 18AWG - 5300FE.00152

Use this Belden control cable to transmit operating signals to your communication devices. It features colour-coded black and red conductors for easy identification in a busy setup. They're insulated with polypropylene material, which is resistant to heat and solvents for extended service life. Additional protection is provided by a PVC jacket that's sufficiently wear-resistant to withstand harsh environments. For added safety, a drain wire made from tinned copper grounds the cable to deflect static discharge.

Features & Benefits

• Supplied on a 152m reel for multiple cut and fix applications
• Ambient operating temperature range between -20°C and +75°C for use in demanding settings
• Conductors are made from bare copper which is corrosion-resistant for durability
• Maximum pulling tension of 26kg (57.5lb) for flexibility in demanding applications
• High voltage rating of 300V makes it suitable for heavy-duty equipment

Applications

• Audio devices
• Robotics
• Security systems

What type of shielding does this cable have?

This cable's conductors are shielded in a tape made from Belden's patented Bedfoil, which is an aluminium/polyester material that can effectively block EMI (electromagnetic interference) and static noise. As it has 100% coverage, you can be sure of full protection for smooth signal quality.
