5300UE.00152, Belden Control Cable, 2 Cores, 0.82 mm², Unscreened, 152m, Chrome PVC Sheath, 18 AWG, Кабель

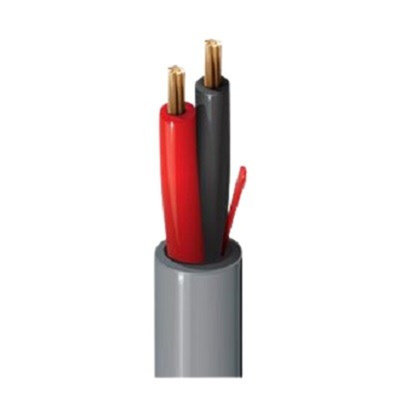

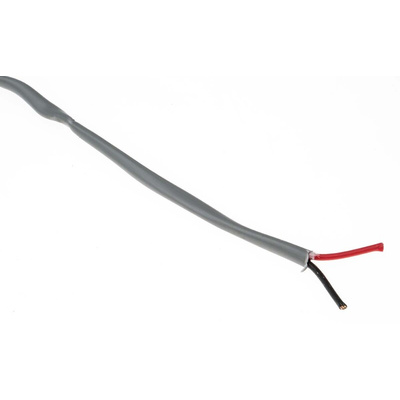

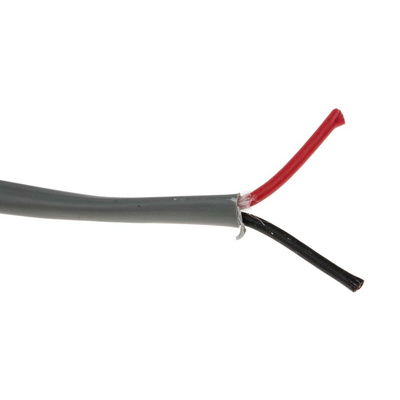

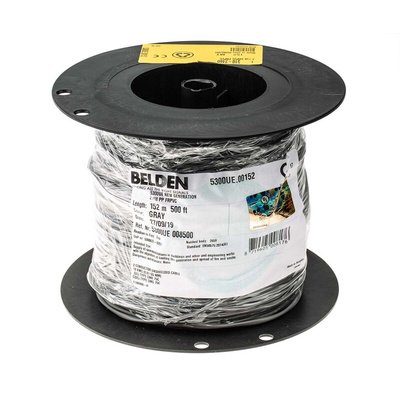

Belden 2-Core Audio Control Cable, 152m Length, 18AWG - 5300UE.00152

Use this 2-core cable from Belden to deliver audio signals safely and efficiently between your electrical devices. It features a multicore twisted cable design which minimises EMI (electromagnetic interference) and external signal distortion to ensure safe signal transmission. For quick transference, this cable is fitted with highly conductive copper contacts with a low resistance of 21.2Ω/km (ohm per kilometre). Thanks to the cable’s outer PVC jacket and durable PP (polypropylene) insulation, it’s protected against high temperatures and chemical exposure.

Features & Benefits

• Chrome sheath colour for easy cable identification
• Durable PVC jacket with ripcord offers flexibility for easy installation
• High voltage rating of 300V for use in high-energy systems
• Outer diameter of just 4.01mm to fit in compact spaces
• Capacitance of 70.52pF/m (picofarad per metre) allows it to store high levels of energy

Applications

• Analogue signalling
• Intercom systems
• Computer communication devices

What’s the operating temperature range of this cable?

This cable has a wide operating temperature range between -20°C and +75°C, making it suitable for use in industrial environments where demanding conditions are expected.
