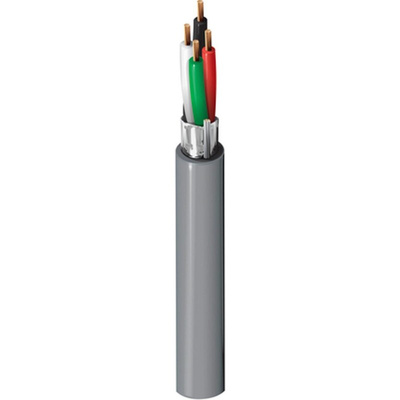

5302FE.00152, Belden Control Cable, 4 Cores, 0.82 mm², Screened, 152m, Grey PVC Sheath, 18 AWG, Кабель

Belden Control Cable, PP Insulation, 4A Current Rating - 5302FE.00152

Choose this control cable from Belden to reliably connect low-frequency commercial systems like alarms. It has four copper cores to quickly transmit signals. You can rely on the drain wire to ground sudden electrical surges and prevent shocks during handling. For longevity, the cable has a robust PVC jacket that resists tearing caused by rough handling. With 152m of cable per reel, you'll be well-stocked and ready to handle all your wiring needs.

Features & Benefits

• 4.57mm outer diameter saves space in crowded setups
• Wide operating temperature range between -20°C and +75°C for use in extreme environments
• Jacket ripcord makes stripping easy for fast installation
• Small 1.8in bend radius to fit in compact wire arrangements

Applications

• Security industry
• Sound systems
• Communication networks

What kind of shield does this cable have?

This cable features Belden's patented Beldfoil shield, which covers the conductors entirely to prevent crosstalk and EMI.

Datasheet

Cable Selection Guide
