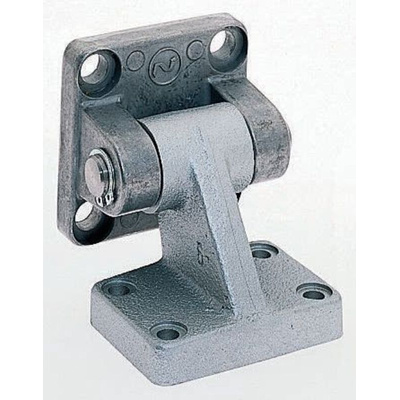

Norgren Rear Hinge QA/8063/24, To Fit 63mm Bore Size

IMI Norgren Rear Hinge, 63mm Bore Size - QA Series - QA/8063/24

For the smooth movement of your pneumatic cylinders in dynamic settings, choose this hinge assembly from IMI Norgren. Its components are made of durable metal that's resistant to wear and corrosion, so it's suitable for use in harsh environments. The assembly consists of a mounting block and a movable clevis that enable your cylinder to make oscillatory movements, so it's useful in lifting applications and vibrating systems. You can use a simple Allen key to install this unit, saving time and eliminating the need for complex tooling.

Features & Benefits

• Supplied with pre-drilled holes for quick and simple installation
• Compatible with lubricants and bearings to reduce friction
• Designed to fit 63mm bore size cylinders for heavy-duty applications
• Light weight of 360g for easy handling during installation

Applications

• Robotics and automation
• Construction equipment
• Lifts and escalators

What precautions should I take when installing this hinge assembly?

When installing this assembly, it's important to check the load rating of the cylinder and ensure it's in the range that the mounting unit can handle. Overloading the hinge may cause it to fail, leading to system downtime.
