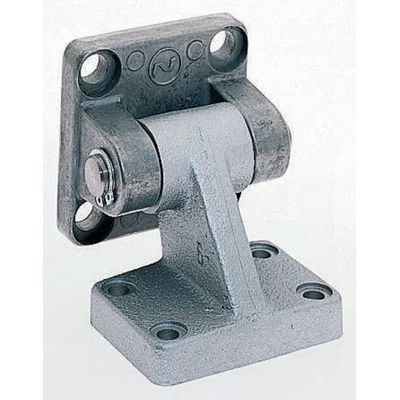

Norgren Rear Hinge QA/8080/24, To Fit 80mm Bore Size

IMI Norgren Rear Hinge, To Fit 80mm Cylinder Diameter, 60 (W) x 63mm (H) - QA Series - QA/8080/24

Keen to secure your pneumatic piston rod cylinders without restricting their freedom to move? Reach for this rear hinge from IMI Norgren to stabilise components while still granting them the motion they need to perform. The sturdy base is unshakeable and firmly attaches to panels to steady and align moving parts. A swivelling top bracket allows set movements while keeping a tight hold on barrels. It gives you leeway to manipulate the part, making installation easy as can be. This combined effort secures elements to boost performance and limit downtime.

Features & Benefits

• Tough aluminium construction stands up to abrasive, corrosive and impact damage
• Pre-drilled holes for speedy and convenient installation
• Compact design with dimensions of 60 (W) x 63mm (H) fits snugly into tight spots

Applications

• Automotive industry
• Aerospace applications
• Medical equipment
• Railway operations

How do I maintain this rear hinge?

This component needs minimal maintenance. Simply lubricate the easy-to-reach swivel bracket to keep it moving smoothly.

What bore size does this rear hinge fit?

This hinge is designed for use with 80mm-bore cylinders. Remember to always match the bore diameter and bracket for optimal performance and safety.
