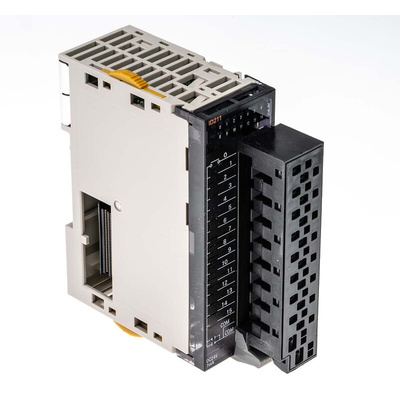

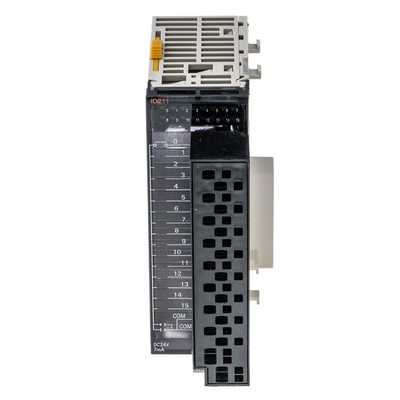

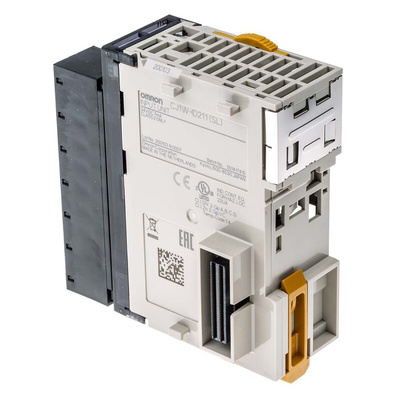

CJ1W-ID211-SL, Omron PLC Expansion Module for Use with SYSMAC CJ Series, Digital, Модуль расширения

Omron PLC extension module

The Omron PLC extension module has 16 digital inputs and 1 word allocated. It enables digital I/O, analogue I/O and communication modules to clip together to the right of the CPU in any combination to increase the system throughput. Modules can be connected to the system as a part of an expansion assembly to receive the ON/OFF signals from external devices into the PLC system to update I/O memory in the CPU unit. A wide range of CJ series input units is available featuring high-speed input and suitability for various applications. This module is used with SYSMAC CJ Series.

Features and Benefits

High-speed inputs available
ON response rime: 15μs
OFF response time: 90μs
This 24VDC model can be connected to devices with either NPN or PNP outputs
No need to select the polarity
A digital filter in the unit can be set from 0ms to 32ms to reduce the influence of external noise
Either a Fujitsu or MIL connector interface can be used
Removable screw terminal block conversion units are available, making it easy to connect to external devices

Applications

Industrial automation
Robotics
Automobiles industry

Certifications

CE
cULus approved
Lloyd approved
NK certified
UC1 listed
