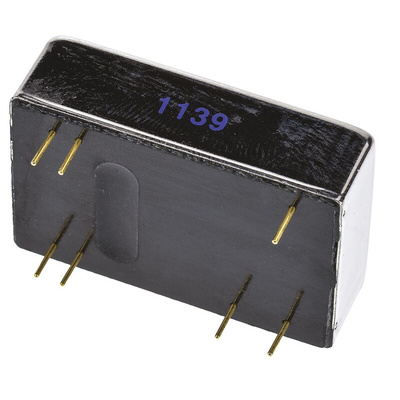

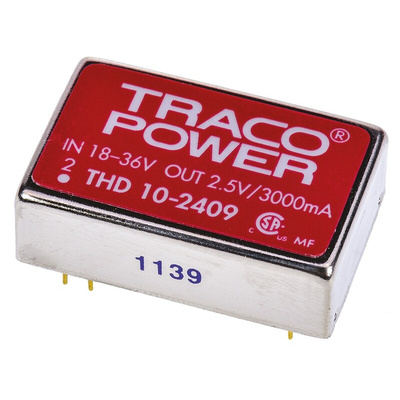

THD 10-2409, TRACOPOWER THD 10 DC-DC Converter, 2.5V dc/ 3A Output, 18 → 36 V dc Input, 10W, Through Hole, +71°C Max Temp, Преобразователь

Traco 10W Regulated Isolated DC-DC Converter - THD10 Series

The Traco Power THD 10 series is a range of 10W, single output, regulated, isolated, high performance DC-DC converters with a low profile package and wide input voltage range. These isolated high performance DC-DC converters have an internal EMI filter to EN55022 class A and a full SMD-design using ceramic capacitors for reliability and long life. Typical applications for these DC-DC converters include industrial electronics, instrumentation, data communication systems and battery operated equipment.

Products not recommended for new designs please refer to the alternative at the bottom of the page
Very high power density in DIP–24 package
Wide 2:1 input range
Very high efficiency up to 87%
I/O isolation 1500V
Input filter to meet EN 55022, class A without ext. components
Low ripple and noise
Continuous short circuit protection
Operating temp. range –40°C to +71°C

Standards

UL/cUL 60950-1, EN 60950-1, IEC 60950-1

Approvals

CSA certified for Canada and US, CB
