TMR 2423, TRACOPOWER TMR 2 DC-DC Converter, ±15V dc/ ±65mA Output, 18 → 36 V dc Input, 2W, Through Hole, +85°C Max Temp, Преобразователь

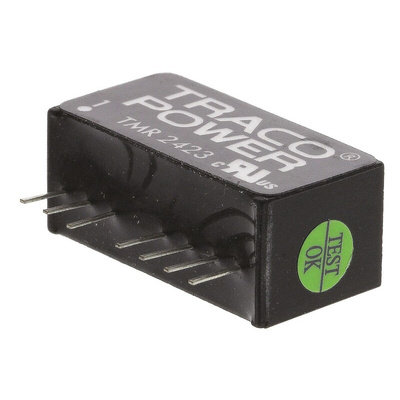

Traco Power DC-DC Converter, 82% Efficiency, SIP-8 Format - TMR 2 Series - TMR 2423

Need a reliable power source but have limited PCB space? Make the most of a small setup with this DC-DC converter from Traco Power. It takes up just 2cm² of board room thanks to its compact SIP-8 format. As it has dual outputs, this isolated 2W device delivers a regulated supply to two electronic components. Its wide 2:1 input range means it accepts between 18 and 36V DC, stepping them down to a smooth 15V DC output. An 82% efficiency rating means you can be sure minimal energy is wasted during conversion.

Features & Benefits

• Fits into miniature setups, thanks to dimensions of just 21.8 (L) x 9.1 (W) x 11.2mm (D)
• 1.6kV DC isolation voltage puts up a protective barrier between input and output
• Remote on/off feature lets you control your power supply at a distance
• Continuous short-circuit protection prevents damage to downstream equipment if there's a fault
• Operating temperature range between -40°C and +92°C means it's suitable for harsh working conditions

Applications

• Industrial electronics
• Computer design
• Communication equipment

How do I mount this DC-DC converter?

The unit is installed using through-hole mounting to achieve a permanent and stable connection to your PCB, even if there are mechanical vibrations.
