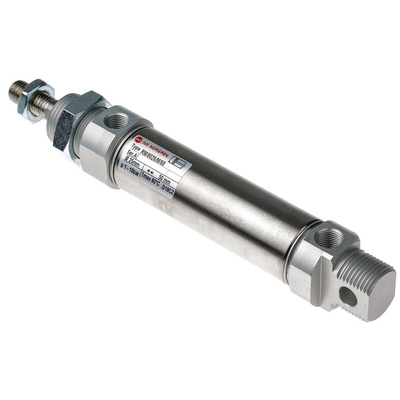

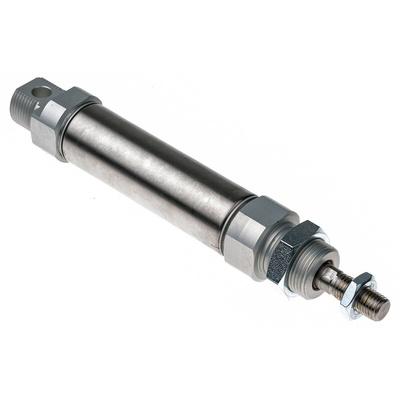

RM/8020/M/25, Norgren Pneumatic Piston Rod Cylinder - 20mm Bore, 25mm Stroke, RM/8000/M Series, Double Acting, Пневмоцилиндр

IMI Norgren Pneumatic Piston Rod Cylinder, 163g Weight, 120mm Length - RM/8000/M Series - RM/8020/M/25

Convert compressed air to linear motion in your systems with this pneumatic piston rod cylinder from IMI Norgren. The unit has compact dimensions of 120 (length) x 30mm (diameter), making it easy to install in setups with limited space. It has a G1/8 port thread, so it's compatible with standard equipment in your setup. For flexibility, it can be attached with a swivel bracket so it can rotate in multiple directions. Thanks to a broad operating temperature range of -10°C to +80°C, this cylinder is suitable for use in demanding industrial conditions.

Features & Benefits

• Maximum operating pressure of 10bar for use in heavy-duty machinery
• Low weight of 163g for minimal strain on equipment
• Corrosion-resistant polyurethane buffer cushioning absorbs shocks and impacts to enhance service life
• Double-acting design for versatility

Applications

• Steam engines
• Motor equipment

What's the piston rod made of?

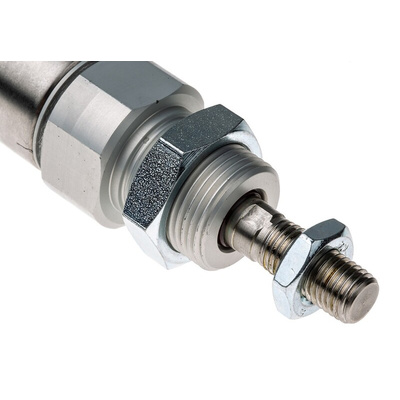

The piston rod is made of durable stainless steel. This means you can rely on it for long-term performance in harsh environments.

Is a locknut supplied with this piston rod?

Yes, it's supplied with a locknut that lets you achieve a reliably firm hold.

RM80 Data Sheet
