RM/8025/M/25, Norgren Pneumatic Roundline Cylinder - 25mm Bore, 25mm Stroke, RM/8000/M Series, Double Acting, Пневмоцилиндр

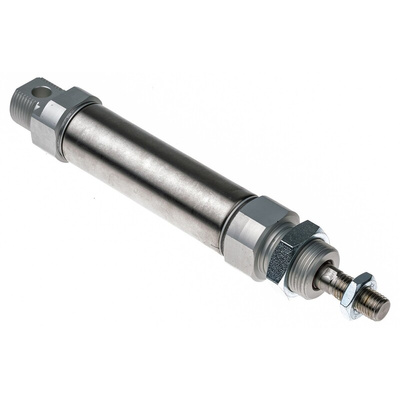

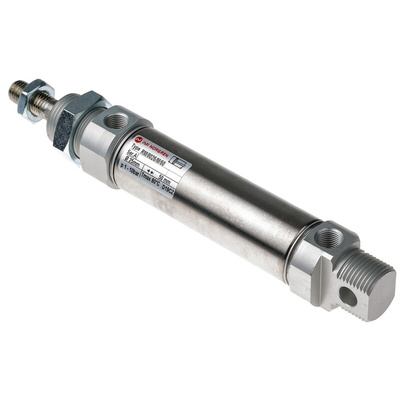

IMI Norgren Pneumatic Roundline Cylinder, 25mm Bore, 25mm Stroke - RM/8000/M Series - RM/8025/M/25

This IMI Norgren pneumatic piston rod cylinder generates linear motion in your pressurised system. When compressed air enters the port, it pushes the piston forward, then a spring mechanism pulls it back. This is useful for performing automated conveyor actions, lifting heavy objects or providing suspension. Thanks to a G1/8 threaded connector, it's easy to screw the unit in place and keep the piston fixed. An operating pressure range between 1 and 10 bar makes this cylinder a versatile choice.

Features & Benefits

• Polyurethane buffer and wiper for resistance to water, oil and grease
• Austenitic stainless steel barrel and piston rod to withstand corrosion wear
• Supplied with locknut to keep cylinder securely in place
• Nitrile rubber seals to stop compressed air from escaping
• Lightweight 228g construction won't put strain on your system

Applications

• Factory automation
• Transportation
• Packaging machinery

Does this pneumatic roundline cylinder filter out contaminated air?

Yes, this cylinder has a filtration size of 40μm (micrometres) to trap contaminants in pressurised air.

Is this pneumatic roundline cylinder double acting?

Yes, this cylinder is double-acting so the piston rod advances and retracts in a linear motion.

RM80 Data Sheet
