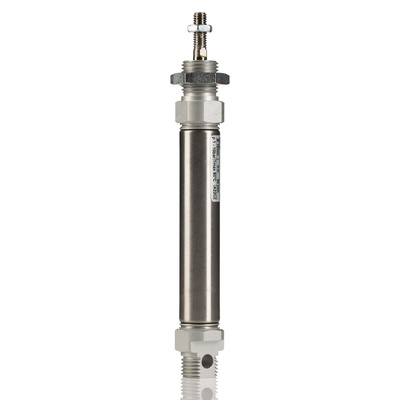

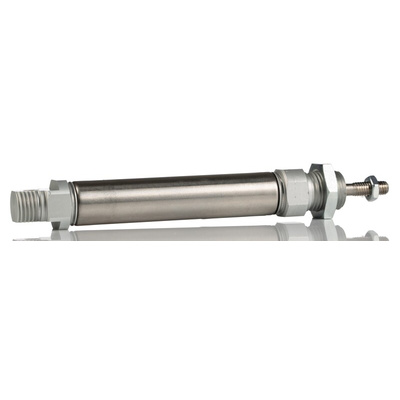

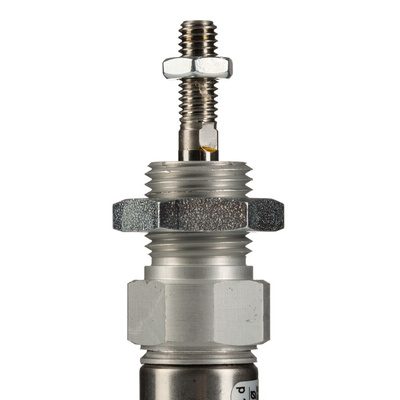

RM/8016/M/50, IMI Norgren Pneumatic Piston Rod Cylinder - 16mm Bore, 50mm Stroke, RM/8000/M Series, Double Acting, Пневмоцилиндр

IMI Norgren Pneumatic Piston Rod Cylinder, M5 Port Connection, 16mm Cushion Length - RM/8000/M Series - RM/8016/M/50

Choose this double-acting pneumatic piston rod cylinder from IMI Norgren for bi-directional applications like opening and closing a gate. It features a shock-absorbing PUR buffer that stops the piston from damaging the cap or head during operation, which prolongs the cylinder's lifespan. Thanks to the standard M5 port, it's easy to install in your existing equipment. Once installed, this device can withstand up to 10 bar operating pressure, making it suitable for small and medium pneumatic systems.

Features & Benefits

• Compact size of 21 (D) x 155mm (L) for space-saving installation
• Nitrile rubber seal is resistant to oils and chemicals for use in industrial facilities
• Wide operating temperature range between -10°C and +80°C to suit demanding conditions

Applications

• Transportation industry
• Packaging equipment
• Manufacturing facilities

How does a double-acting cylinder work?

A double-acting cylinder has two connection ports to move the piston backwards and forwards. This device uses a magnet to alternate between intake ports to change direction quickly.

What accessories can I use with this unit?

You can use several accessories with this cylinder, including a magnetically operated reed switch (218-0616), a regulator (212-9221) or a switch mounting bracket (218-0732).

RM80 Data Sheet
