RM/8025/M/50, IMI Norgren Roundline Cylinder - 25mm Bore, 50mm Stroke, RM/8000/M Series, Double Acting, Пневмоцилиндр

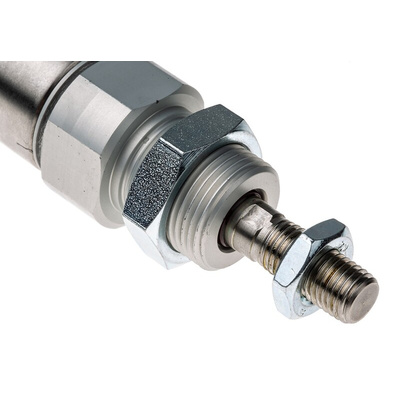

IMI Norgren Double-Acting Round Pneumatic Cylinder, 25mm Bore, 50mm Stroke - RM/8000/M Series - RM/8025/M/50

Install this double-acting round pneumatic cylinder from IMI Norgren to ensure the effective and reliable performance of your compressed air systems. It generates linear motion and is ideal for actions like positioning, clamping or ejecting other parts. The rod is made of stainless steel for durability and corrosion resistance, ensuring reliable, long-lasting performance. Thanks to its double-acting mechanism, it allows for better control over movements as the pressurised air moves both ways to advance and retract the rod.

Features & Benefits

• Corrosion-resistant PUR (polyurethane) buffer material is wear and abrasion-resistant
• Included locknut for simple and secure installation
• Wide operating temperature range of -10°C to +80°C for use in demanding environments

Applications

• Manufacturing industry
• Automotive workshops

How do I know which is the correct pneumatic cylinder size for my system?

To choose the correct cylinder size, you first need to determine how much force is called for to actuate an operation. When you know the force needed, you can determine whether the bore size or power factor of a cylinder will be enough to produce the required force.

RM80 Data Sheet
