RM/8025/M/80, IMI Norgren Pneumatic Roundline Cylinder - 25mm Bore, 80mm Stroke, RM/8000/M Series, Double Acting, Пневмоцилиндр

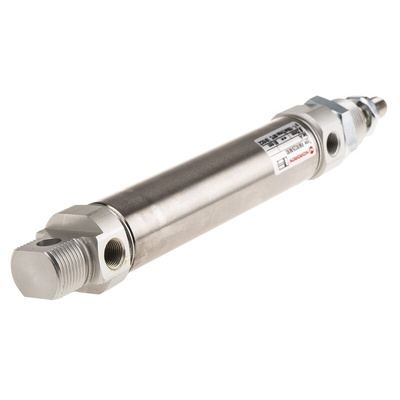

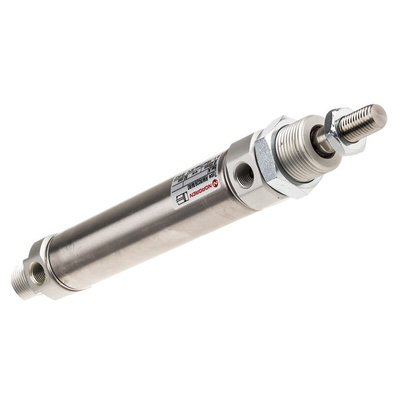

IMI Norgren Pneumatic Roundline Cylinder, 25mm Bore, 80mm Stroke - RM/8000/M Series - RM/8025/M/80

Use this pneumatic roundline cylinder from IMI Norgren to produce force and drive your industrial processing equipment. Its durable stainless steel piston can withstand the strong impacts expected in industrial systems, while the polyurethane buffer is resistant to corrosion and delivers a long service life. The cylinder has double-acting pneumatic actuators with dual connection ports so the applied compressed air advances and retracts the rod in a linear motion. A maximum operating pressure of 10 bar means this is a practical option for use in high-pressure applications.

Features & Benefits

• Wide operating temperature range between -10°C and +80°C for use in extreme conditions
• Compact outer diameter of 30mm, for use in smaller pneumatic setups

Applications

• Factory automation
• Energy systems
• Process control
• Food and beverage production

How do I mount this pneumatic roundline cylinder?

This versatile pneumatic roundline actuator can be mounted in any position to suit your application. To achieve a secure, vibration-free fit, optional additional mounting hardware is available, including a piston rod clevis (220-3947) and mounting bracket (220-3939).

Datasheet
