703042/181-000-23/000, Jumo dTRON PID Temperature Controller, 96 x 48 (1/8 DIN)mm, 4 Output Logic, Relay, 110 → 240 V ac Supply Voltage, Регулятор температуры

Jumo Temperature Controller

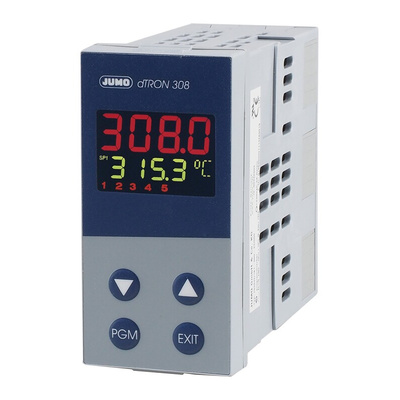

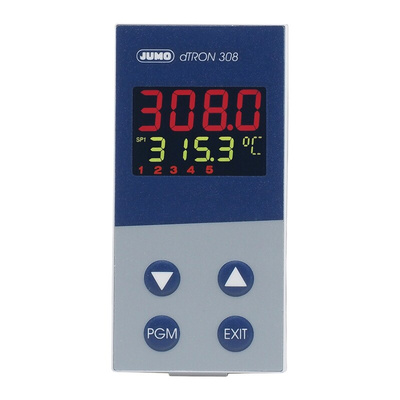

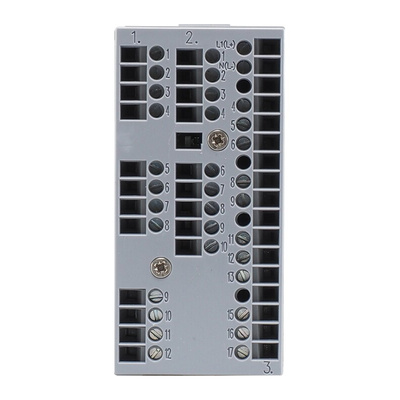

The Jumo dTRON series temperature controller has supply voltage ranging from 110VAC to 240VAC. This controller has a width of 48mm and a height of 96mm(portrait format) device. It has a single analogue input, two logic inputs, two relays and two logic outputs. This is robust equipment that includes 4, freely programmable devices in different DIN formats for controlling temperature, pressure and other process variables. The instruments can be used as 2-state, 3-state, modulating or continuous controllers. The electrical connection at the back is established via screw terminals.
Inclusions:
Controller, seal, fastening elements, operating instructions.

Features and Benefits

2 self-optimisation processes
2 timer functions
4 limit comparators
4 programmable set points, 2 parameter sets
Bright LCD display for viewing different process parameters
Freely programmable controller structures (2-point and 3-point step controllers and continuous-action controller)
Maximum 2, freely programmable analogue inputs
Minimum sampling time is 50ms
Profibus DP interface
Program function with 8 sections or ramp function
Programmable as a differential, humidity or ratio controller
Quick and user-friendly configuration via set-up program
RS422/485 interface
Tried-and-tested, clearly laid-out operating and configuration diagram
Up to 8 binary outputs

Certifications

EN 14597
IP20 rated
IP65 rated
