703042/181-400-23/000, Jumo dTRON PID Temperature Controller, 96 x 48 (1/8 DIN)mm, 5 Output Analogue, 110 → 240 V ac Supply Voltage, Регулятор температуры

Jumo Temperature Controller

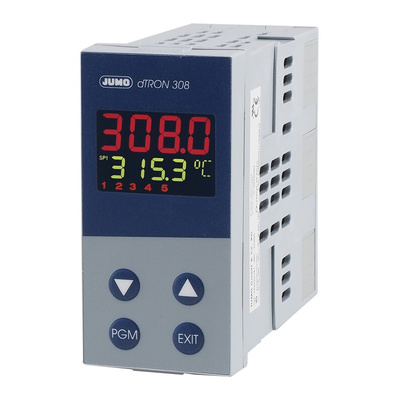

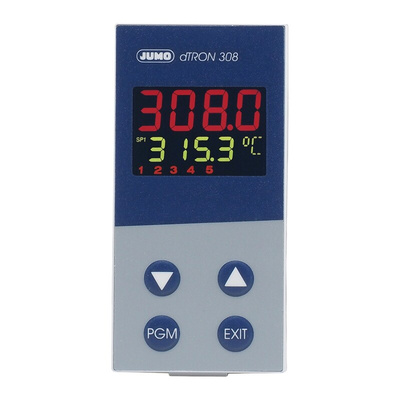

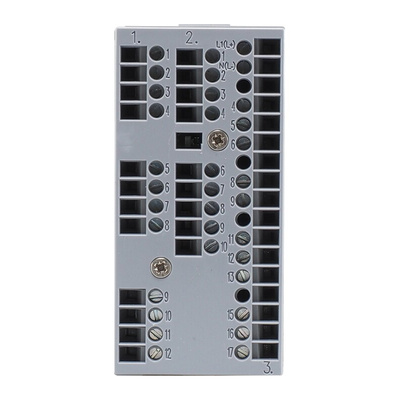

The Jumo dTRON series temperature controller has supply voltage ranging from 110VAC to 240VAC. This controller has a width of 48mm and a height of 96mm(portrait format) device. It has a single analogue input, two logic inputs, two relays and two logic outputs. This device gives 2 analogue outputs. This is robust equipment that includes 4, freely programmable devices in different DIN formats for controlling temperature, pressure and other process variables. The instruments can be used as 2-state, 3-state, modulating or continuous controllers. The electrical connection at the back is established via screw terminals.
Inclusions:
Controller, seal, fastening elements, operating instructions.

Features and Benefits

2 self-optimisation processes
2 timer functions
4 limit comparators
4 programmable set points, 2 parameter sets
Bright LCD display for viewing different process parameters
Freely programmable controller structures (2-point and 3-point step controllers and continuous-action controller)
Maximum 2, freely programmable analogue inputs
Minimum sampling time is 50ms
Profibus DP interface
Program function with 8 sections or ramp function
Programmable as a differential, humidity or ratio controller
Quick and user-friendly configuration via set-up program
RS422/485 interface
Tried-and-tested, clearly laid-out operating and configuration diagram
Up to 8 binary outputs

Certifications

EN 14597
IP20 rated
IP65 rated
