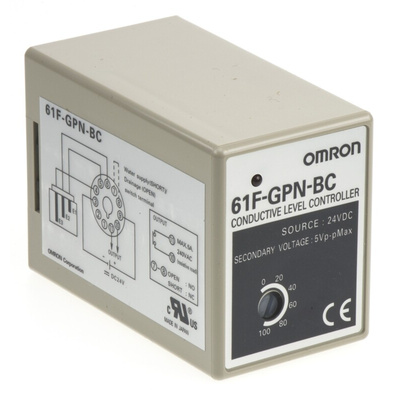

61F-GPN-BC 24VDC, Omron Level Controller - DIN Rail Mount, 24 V dc, Контроллер уровня

5109297
Номер производителя: 61F-GPN-BC 24VDCПроизводитель: Omron
Цена за шт.
44199.00 руб. (С НДС) *
Количество 5+
Цена 42849.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Omron Level Controller

The Omron conductive level controller is a 24VDC and DIN rail mount device. This controller combines a DC power supply with AC sensing circuitry. The battery (24VDC) allows use in locations without AC power supply. AC sine-wave voltage between electrodes enables stable detection with no electric corrosion. Outputs can be set to self-hold at ON or OFF using special circuits. The liquid level relays are used to monitor the levels of conductive liquids and are available in Up/Down, Minimum, Maximum and Fill/Empty variations. Liquid level relays are straightforward to install and safe to use.

Features and Benefits

Supports multi-channel sensing
AC sine-wave voltage for electrodes enables stable detection with no electric corrosion
Adjustable sensitivity, with an operating resistance range of 0kohm to 100kohm, allows use in wide variety of liquids
Transistor open-collector output version can be directly connected to PLC input
Relay contact chatter conventionally caused by waves can be avoided by using transistor output version
Same wiring for supply and drainage
Inter electrode voltage is 5VAC maximum
Release resistance is 200% maximum of the operation resistance

Applications

Monitoring and control of liquid levels
Protection of pumps against dry running
Ability to detect liquid leaks in a systems
Control of media mixing ratios
Control of liquid levels

Certifications

CE certified
UL approved

Техническая спецификация
pdfDatasheet
Вид монтажа:
Крепление на DIN рейку
Габаритная ширина:
38мм
Длина общая:
84мм
Напряжение питания:
24 В пост. тока
Общая глубина:
49.4мм
Пробники:
5В перем. тока
Рабочая температура - максимальная:
+55°C
Рабочая температура - минимальная:
-10°C
